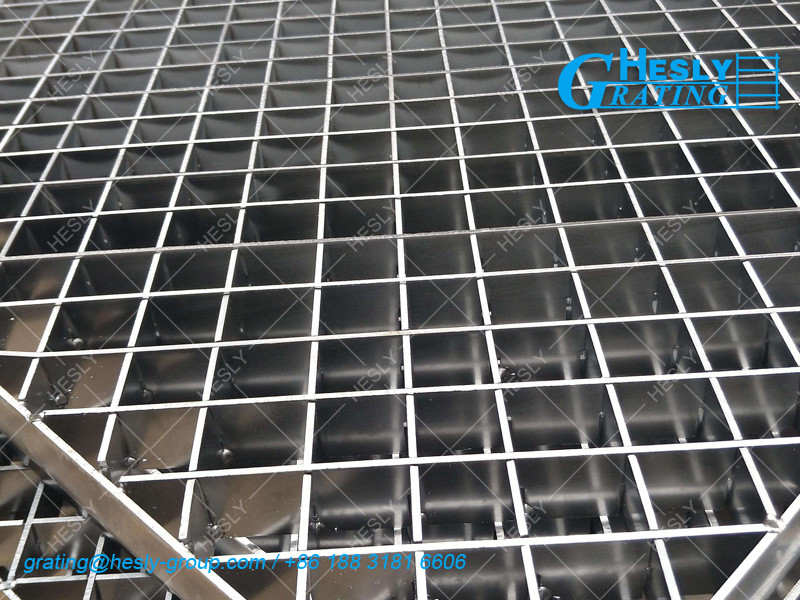

AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales

AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales
AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales AISI304 Pressure Locked Bar Grating | 40mm depth | 50X50 square hole | HeslyGrating Factory Sales
Basic Information
Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: G255/30/100
Minimum Order Quantity: 30 SQM
Price: Negotiated according to the order
Packaging Details: In bulk
Delivery Time: according the the order
Payment Terms: T/T, L/C at sight
Supply Ability: 500 SQM/day
Get Best Price Contact Now
Item: Welded Bar Grating Material: Stainless Steel 304 Grade
Surface: Smooth Bearing Bar: 25X5mm
Bearing Bar Spacing: 30mm Cross Bar: Square Twisted Bar / Round Bar φ6, φ8mm
Span: 200mm To 6000mm

Stainless Steel 304 grade Welded Bar Grating

Stainless steel grating has been the standard industrial footwalk product for severe corrosive environments and has been a popular grating choice for many years. HeslyGrating manufactures stainless steel welded & swaged bar grating from type 304 and 316 stainless steel bar. Stainless steel grating is used at chemical plants, food processing facilities, oil and gas producers and is also used in many other commercial and architectural applications.

stainless steel grateHESLY Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types "WS" (welded stainless grating), "DTS" (dovetail stainless pressure locked) and "SLS" (swage locked stainless). Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at 4" or 2" on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.

Type "WS" Welded Stainless Steel Grating

Our strongest and most economical stainless product, type "WS" gratings are manufactured by forge welding rectangular bearing bars and drawn cross bars. This welding process provides a positive fused intersection providing years of service under the most demanding conditions.
Type "WS" stainless gratings are available in "19 space" (1-3/16"), "15 space" (15/16") and "11 space" (11/16") bearing bar centers. Standard cross bar spacing is 4" on center and the optional 2" cross bar spacing is also available.

Type "DTS" Dovetail Pressure Locked Stainless

Manufactured with a deep rectangular cross bar, type "DTS" dovetail stainless grating is commonly preferred for architectural applications. Sunscreens, grilles and infill panels are just some of the applications where this distinct “egg-crate” configuration is the ideal building accent.
Type "DTS" stainless gratings are available with bearing bar spacings ranging from 19/16" (1-3/16") to 7/16" on center.
For applications where increased bearing bar spacing is desired, consider the specialty items presented in the Architectural Products section of this website.

Type "SLS" Swage Locked Stainless

Hollow tube cross bars are hydraulically swaged into pre-punched holes in the bearing bars to make type "SLS" swage locked stainless grating. This type of construction provides a secure bearing bar/cross bar intersection and products are available with bearing bar spacings ranging from 19/16" (1-3/16") to 7/16" on center.
This attractive grating, with the swaged cross bars slightly below the top surface of the grating, is very popular for “close-mesh”, ADA conforming applications. Consider "11 space" or "7 space" gratings for vault covers or entrance mats located in the public way.

Stainless Steel Finishes

As produced, stainless steel products typically display discoloration caused by the introduction of heat during welding, cutting or grinding processes. If appearance is important to your application, consideration should be given to secondary cleaning or electro-polishing.
Stainless Steel Grating
Mill Finish
Products will display discoloration from welding, cutting and grinding. Satisfactory for industrial or process applications where appearance is not a consideration.
Commercial Clean
A uniform, matte finish is achieved by                                                                                                           abrasive blasting followed by passivation to remove manufacturing contaminants.
Electro-Polished
A bright, chrome-like                                                               appearance achieved by immersion in chemicals that clean and “polish” the base metal.

Common Specifications:

Series

Pitch of Bearing bar

Cross-bar Pitch

Specification of bearing bar load width×thickness

20×3

25×3

32×3

40×3

20×5

25×5

  1

  30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

  2

  40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

3

60

50



G253/60/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50

Series

Pitch of Bearing bar

Cross-bar Pitch

Specification of bearing bar load width×thickness

32×5

40×5

45×5

50×5

55×5

60×5

  1

  30

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100

50

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

  2

  40

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100

50

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

3

60

50

G325/60/50

G405/60/50

G455/60/50

G505/60/50

G555/60/50

G605/60/50

stainless steel grating 304 welded bar grating

304 metal bar grating stainless steel grating

stainless steel grating

304 stainless steel welded bar grating
