HeslyGratings full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications. Attributes that make safety grating a preferred choice include:



Grip Strut Perforated Safety Grating is an excellent slip resistant material that is low in material cost, as well as installation cost. This planking, at 3" deep x .100 thick and 11-3/4" wide (5 diamond), provides maintenance-free open design for drainage of fluids, chips, grease, mud and snow. The serrated surface grips soles securely-in all directions-in practically every place. High strength-to-weight performance is achieved through depth of section and structural design. Light and easy to handle, this helps in quick installation, that usually can be handled by one person. Available in 5052 Aluminum. Both the length and width are available in custom-made.



Safety First

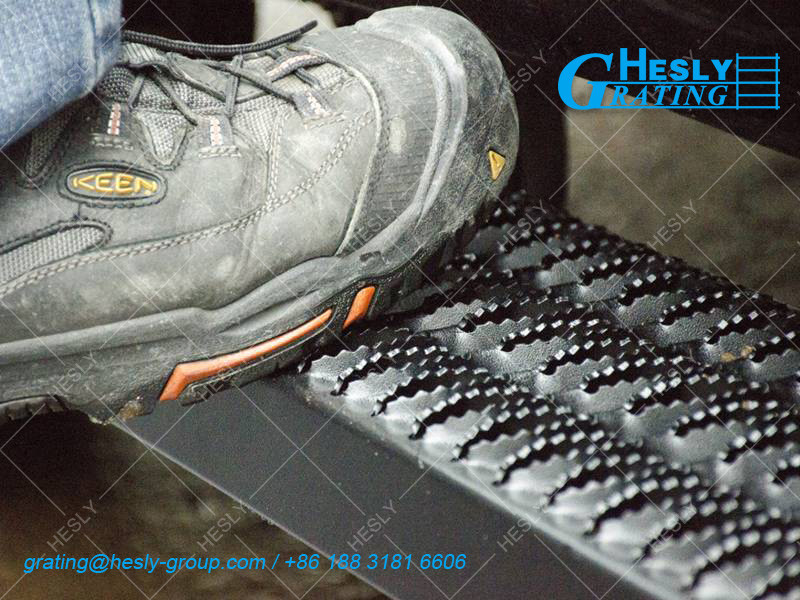

Safety grating is recommended for companies who are concerned with their work safety. Perforated safety grating is a metal grating type that is used to improve the surface traction. To improve the traction, the perforated stair treads has small diamond shape-like protrusion in its surface finish. The protrusion increases the grip that prevents any slip and fall accident from happening.

Safety grating also has plenty of open surfaces. This allows free air flowing and proper drainage, preventing water or any liquid from building up that can lead to safety hazards or slips.



Common specifications:

• Channel height available: 2”,2 1/2”,3”,4”,5”(walkway)
• Steel gauge: 9GA,10GA,11GA
• Channel width: 9 1/4”,13 3/4”,27 4/7”,30”,36”
• Standard Length: 10’,12’
• Material: Aluminum,Stainless Steel,Galvanized Steel,Black HRPO,etc
• Popular type:2-Diamond,3-Diamond,5-Diamond,6-Diamond,8-Diamond,etc

Material	Thickness	Channel width-diamond No.	Bending height	Folding	Length
carbon steel   galvanized   stainless steel   aluminum	2.0mm   2.5mm   3.0mm   3.5mm	4 3/4" - 2 Diamond Holes	30mm 35mm 40mm 45mm 50mm 55mm ..... 100mm	15mm   20mm   25mm	max 12'
		7" - 3 diamond holes
		9 1/2" - 4 diamond holes
		11 3/4" - 5 diamond holes
		14 1/2" - 6 diamond holes
		17" - 7 diamond holes
		18 3/4" - 8 diamond holes
		21 1/2" - 9 diamond holes
		24" - 10 diamond holes



Material of Perforated Grip Strut Safety Grating



Slip-Resistant Safe in all directions High load capacity Versatile Economical Pattern: in regular, heavy duty, walkway and stair treads

Allows for fluid or mud drainage Low Maintenance Lightweight High Strength-to-Weight Easy to handle and install
