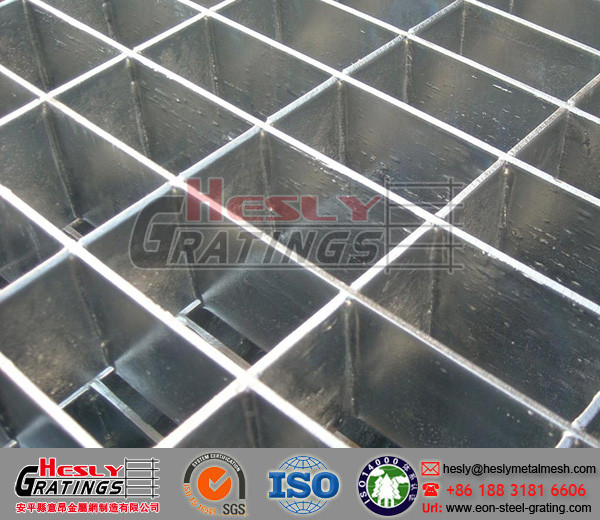

HESLY Steel Grating Specs, China Steel Bar Grating Manufacturer

Basic Information

Place of Origin:	HESLY METAL MESH,Anping,China
Brand Name:	HESLY/海斯利
Certification:	ISO9001：2008
Model Number:	HESLY-Gratings

Minimum Order Quantity:	10 m2
Price:	negotiated as per the order
Packaging Details:	In bundle
Delivery Time:	according to the order (in stock)
Payment Terms:	T/T, L/C
Supply Ability:	500 m2/day

Get Best Price Contact Now

HESLY Steel Grating Specifications

Pedestrian loads are commonly analyzed with uniform and concentrated loads. For pedestrian comfort, deflection is typically limited to 1/4". Heavy duty and vehicular load tables are presented for specific load conditions. Heavy duty load tables are presented with deflection limited to the lesser of 1/8" or L/400. If your application is not addressed by the load tables found in this website, please contact Interstate Gratings. We will gladly discuss the merits of our diverse products and assist in selecting the product most appropriate for your application.

Load / Deflection Criteria

When specifying metal bar grating it is important to consider the following factors:

Service load required and acceptable deflection
Unsupported clear span
Flooring surface
Banding and trim
Finish

Banding

The open ends of the grating panels can be banded to provide additional transverse stiffness and a finished architectural appearance. This is achieved by welding a flat bar, similar in size to the bearing bars, to the cut ends of the grating. Trim banding should always be specified when gratings are designed to be removable. Banding can reduce impact stresses by transferring loads to adjacent bearing bars and should always be specified when the grating is subject to vehicular loads.

Serrated Surface

The excellent self-cleaning characteristics of plain surface grating make it suitable for the majority of applications. In the presence of fluids or materials that could cause the top surface of the grating to become wet or slippery, specification of the optional serrated surface should be considered. When serrated grating is specified, the bearing bar depth must be 1/4" greater than the sizes shown on the load tables to provide the equivalent strength of non-serrated gratings..

Finished

Steel grating is usually provided with one of three finishes, bare steel (no finish), painted with one coat of manufacturers red, black or silver paint, or hot dip galvanized in accordance with ASTM A-123. Aluminum products are commonly supplied mill finish but they are also available with optional chemically cleaned or anodized finishes. Due to discoloration that occurs during welding and fabrication, Stainless Steel grating products typically require secondary finishing

Commercial cleaning, passivation or abrasive blasting can provide a uniform matte surface and a bright stainless finish can be provided by electro-polishing. All grating products can be provided with specialty finishes including enamel or epoxy paints or powder coating. When considering specialty finishes, consultation with the coating manufacturer is essential.

Contact HESLY for more details or FREE quote... ...

Tel: +86-318-7963989 Mob: +86 188 3181 6606

Email: hesly@heslymetalmesh.com

A branch of HESLY METAL MESH GROUP LIMITED

Group Web: www.heslymetalmesh.com

Gratings Web: www.heslygrating.com
