Place of Origin: | Anping, China |
---|---|
Brand Name: | HESLY |
Certification: | ISO9001:2000 |
Model Number: | G405/30/100 |
Minimum Order Quantity: | 50 ㎡ |
Price: | US$25.00 - US$80.00 |
Packaging Details: | Pallet or In bulk |
Delivery Time: | 10days/20'GP |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000㎡/day |
Material Grade: | Low Carbon Steel | Bearing Bar: | 40X5mm, I Profile Serrated |
---|---|---|---|
Hole Size: | 30X100mm | Coating: | Bare/Galvanised/PVDF/PC |
Dimension: | 1X6m |

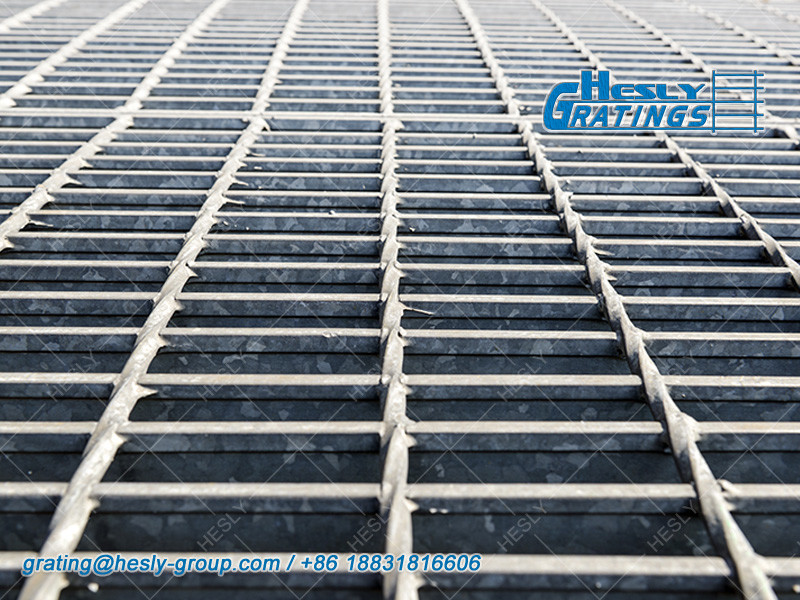

The "I" bar steel grating is made from "I" profile bearing bars. I shape bearing bars supplies lighter weight when the strength is equal to rectangular bar steel grating. I bar steel grating is suitable for both commercial and industrial applications.
|
Application
Steel grating is extremely versatile and can be used in a wide range of applications.
|
|
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
I bar Steel Grating Factory | I shaped Bar Welded Grating |
Serrated I bar Steel Grating | I shaped Bar Grating Factory |
China Steel Grating Factory | Welded Bar Grating Supplier |
Carbon Steel / Stainless Steel / FRP grating factory sales | |
