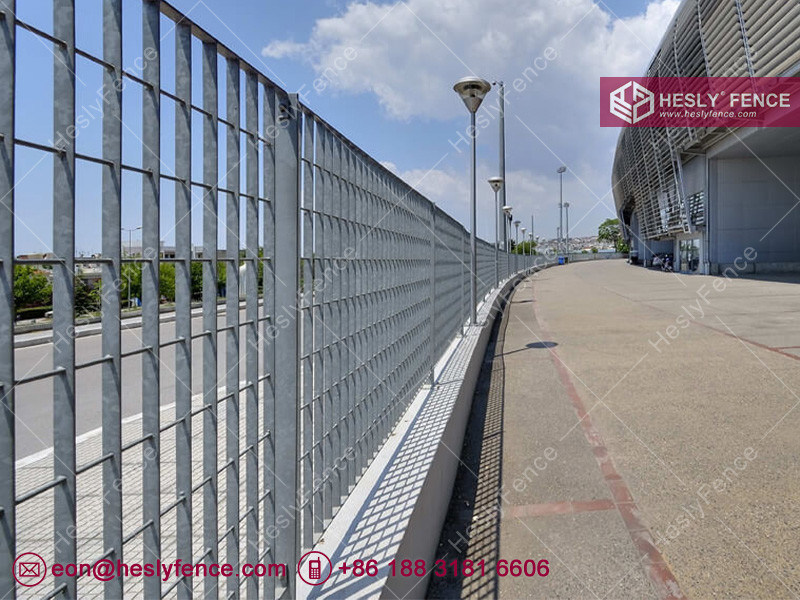

Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory

Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory
Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory
Basic Information
Place of Origin: HeslyGrating-China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: HGF252/65/132
Minimum Order Quantity: 100L.M
Price: US$8.5-US$28.00/L.M
Packaging Details: In bulk
Delivery Time: 15days/40' container
Payment Terms: T/T, L/C
Supply Ability: 500L.M/day
Get Best Price Contact Now
Raw Material: Carbon Steel/Stainless Steel Flat Bar: 25X2mm/25x3mm Etc
Cross Bar: 5mm Steel Rod Hole Size: 65×130mm
Post: 80X8mm Flat Bar Finished: Hot Dipped Galvanised

Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory

Galvanized Steel Grating fence is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other propertier. The hot dipped zinc coating gives the product excellent anti-corrosion

Material: high quality low carbon steel
Types: plain bar as standard.
Finishes: electro galv, hot dipped galv, according to the difference surface treatment.
Application:
galvanized steel grating are widely used by various plants such as electric power,petroleum,chemical industry,metallurgy industry,machinery industry,shipbuilding, harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.

Commen Specifications

Specifications of steel gratings
No Item Description
1 Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
2 Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
3 Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
4 Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.
5 Surface treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
6 Flat bar type Plain, Serrated (tooth-like), I bar (I section)
7 Material standard Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A)
8 Galvanizing standard CN: GB/T13912, US: ASTM (A123), UK: BS729
9 Steel grating standards A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JJS



Package and Delivery

Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory 0 Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory 1 Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory 2
Metal Grating Fencing Steel Grating Fence with Top security Spikes Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Steel Grating Fencing | 25X2mm flat bar | 65X132mm hole | High 1m | Width 2m | HeslyGrating China factory 3

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
  • If need C.F.R offer, just let us the Destination Sea Port.







Contact us for a FREE prompt quotation !
