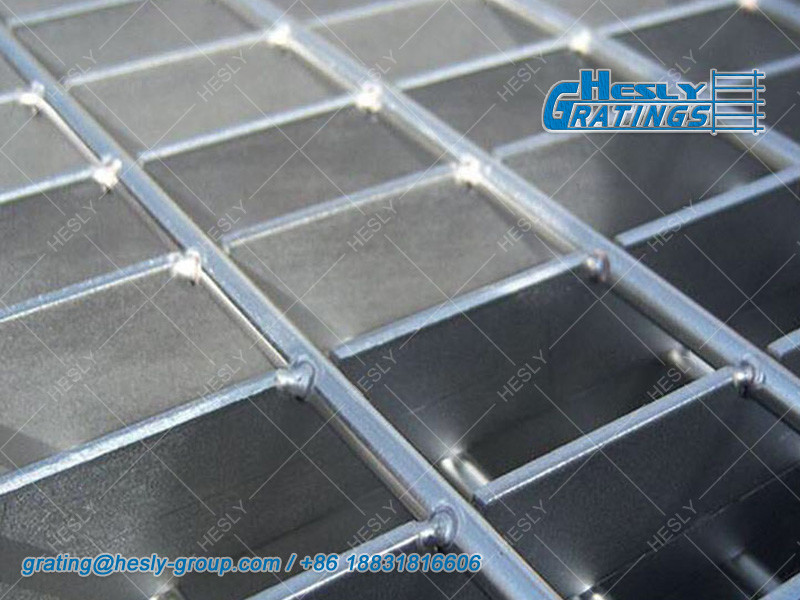

Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export

Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export
Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export
Basic Information
Place of Origin: HeslyGrating-China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: G305/30/100
Minimum Order Quantity: 50 ㎡
Price: Negotiated according to the order
Packaging Details: Steel Pallet
Delivery Time: 15days/20'GP
Payment Terms: T/T, L/C
Supply Ability: 1000㎡/day
Get Best Price Contact Now
Material: Stainless Steel 304, 316 Load Bar Pitch: 20mm - 100mm
Cross Bar: Steel Rod 6mm/8mm/10mm Finish: Polish

Stainless Steel 316 welded bar grating | 32X5mm load bar | 6mm cross bar | Polish treatment | Hesly China Grating Export

Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types welded stainless grating, and pressure locked stainless. Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 25mm to 100mm on center and with cross bars at 50mm or 100mm on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.

Stainless Steel Finishes

As produced, stainless steel products typically display discoloration caused by the introduction of heat during welding, cutting or grinding processes. If appearance is important to your application, consideration should be given to secondary cleaning or electro-polishing.
304 stainless steel bar grating China factoryAISI316 Stainless steel grating China HESLY
Mill Finish - Stainless Steel Material
Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration.

Electro-Polished
A bright chrome-like appearance achieved by immersion in chemicals that clean and “polish” the base metal.



Common Specifications - Welded Bar Grating

SeriesPitch of Bearing barCross-bar PitchSpecification of bearing bar load width×thickness
20×325×332×340×320×525×5
130100G203/30/100G253/30/100G323/30/100G403/30/100G205/30/100G255/30/100
50G203/30/50G253/30/50G323/30/50G403/30/50G205/30/50G255/30/50
240100G203/40/100G253/40/100G323/40/100G403/40/100G205/40/100G255/40/100
50G203/40/50G253/40/50G323/40/50G403/40/50G205/40/50G255/40/50
36050 G253/60/50G253/60/50G403/60/50G205/60/50G255/60/50
SeriesPitch of Bearing barCross-bar PitchSpecification of bearing bar load width×thickness
32×540×545×550×555×560×5
130100G325/30/100G405/30/100G455/30/100G505/30/100G555/30/100G605/30/100
50G325/30/50G405/30/50G455/30/50G505/30/50G555/30/50G605/30/50
240100G325/40/100G405/40/100G455/40/100G505/40/100G555/40/100G605/40/100
50G325/40/50G405/40/50G455/40/50G505/40/50G555/40/50G605/40/50
36050G325/60/50G405/60/50G455/60/50G505/60/50G555/60/50G605/60/50




Reference Photos - HESLY Steel Bar Grating

AISI304 WELDED BAR GRATINGAISI304 Pressure Locked Bar Gratingstainless steel 316 welded grating
AISI304 Steel Grating China Factory304 Pressure Locked Grating SupplierStainless steel 316 welded grating




Steel Clips for Steel Grating
steel grating clipsSteel Bar Grating ClipsSaddle Clips for bar grating
Steel Grating ClipsSteel Bar Grating ClipsSteel Grating Clips


Package and Delivery

316 stainless steel gratingChina steel grating factory salesMetal Bar Grating Exporter
AISI304 Welded Bar Grating ExporterWelded Bar Grating ManufacturerContainer Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Hesly Welded Bar Grating China Factory supplier

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
  • If need C.F.R offer, just let us the Destination Sea Port.




Contact us for a FREE prompt quotation !
