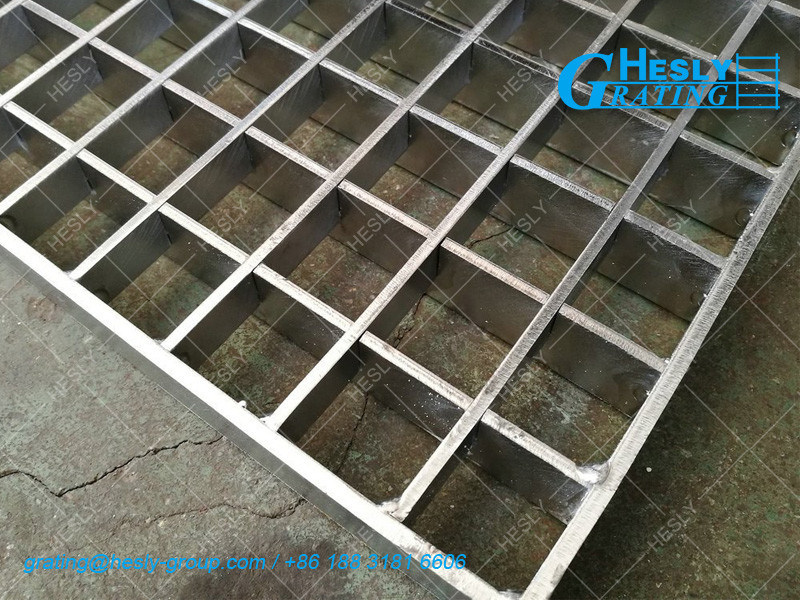

316L stainless steel serrated bar grating, Press Locked Grating

Name: 316L stainless steel serrated bar grating, Press Locked Grating
Brand: HESLY
SKU: G353/30/100
Rating: 4.8 (123 reviews)

Basic Information

Place of Origin:	HeslyGrating-China
Brand Name:	HESLY
Certification:	ISO9001：2008
Model Number:	G353/30/100

Minimum Order Quantity:	10 ㎡
Price:	Negotiated according to the order
Packaging Details:	In bulk
Delivery Time:	according the the order
Payment Terms:	T/T, L/C
Supply Ability:	1000㎡/day

Get Best Price Contact Now

Material:	316L Stainless Steel	Load Bar:	50X5mm Etc
Surface:	Serrated Anti-skidding Or Smooth	Cross Bar:	Round Bar / Twisted Square Bar

316L Stainless Steel Grating/316L Bar Grating

Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types "WS" (welded stainless grating), "DTS" (dovetail stainless pressure locked) and "SLS" (swage locked stainless). Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at 4" or 2" on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.

Type "WS" Welded Stainless Steel Grating

Our strongest and most economical stainless product, type "WS" gratings are manufactured by forge welding rectangular bearing bars and drawn cross bars. This welding process provides a positive fused intersection providing years of service under the most demanding conditions.

Type "WS" stainless gratings are available in "19 space" (1-3/16"), "15 space" (15/16") and "11 space" (11/16") bearing bar centers. Standard cross bar spacing is 4" on center and the optional 2" cross bar spacing is also available.

Type "DTS" Dovetail Pressure Locked Stainless

Manufactured with a deep rectangular cross bar, type "DTS" dovetail stainless grating is commonly preferred for architectural applications. Sunscreens, grilles and infill panels are just some of the applications where this distinct “egg-crate” configuration is the ideal building accent.

Type "DTS" stainless gratings are available with bearing bar spacings ranging from 19/16" (1-3/16") to 7/16" on center.

For applications where increased bearing bar spacing is desired, consider the specialty items presented in the Architectural Products section of this website.

Type "SLS" Swage Locked Stainless

Hollow tube cross bars are hydraulically swaged into pre-punched holes in the bearing bars to make type "SLS" swage locked stainless grating. This type of construction provides a secure bearing bar/cross bar intersection and products are available with bearing bar spacings ranging from 19/16" (1-3/16") to 7/16" on center.

This attractive grating, with the swaged cross bars slightly below the top surface of the grating, is very popular for “close-mesh”, ADA conforming applications. Consider "11 space" or "7 space" gratings for vault covers or entrance mats located in the public way.

tainless steel grating has good corrosion resistance, so ti is widely used in severe corrosive environments, just like chemical industry, food processing industry and offshore oil drilling platform. Stainless steel grating is available in forge welded or press locked with many load bar sizes. The most common material is SUS304, however SUS316 or SUS316L is also available. 304 stainless steel provide excellent balance resistance and workability. 316 stainless steel is better corrosion, pitting resistance and higher strength at elevated temperatures. 316L is extra low carbon variation of 316 to avoid carbide precipitation due to weld.

Stainless Steel Finishes

As produced, stainless steel products typically display discoloration caused by the introduction of heat during welding, cutting or grinding processes. If appearance is important to your application, consideration should be given to secondary cleaning or electro-polishing.

Mill Finish - Stainless Steel Material
Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration.

Electro-Polished
A bright chrome-like appearance achieved by immersion in chemicals that clean and “polish” the base metal.

Common Specifications - Welded Bar Grating

Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
Series	Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
Series	Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Reference Photos - HESLY Steel Bar Grating


AISI304 Steel Grating China Factory	304 Pressure Locked Grating Supplier	316 Welded Bar Grating Factory Sales

**Steel Clips for Steel Grating**

Steel Grating Clips	Steel Bar Grating Clips	Steel Grating Clips

Package and Delivery


AISI304 Welded Bar Grating Exporter	AISI316 Bar Grating Manufacturer	Container Loading

How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.

Required Information for a formal quotation

Material: Mild Carbon, 304/316 stainless steel, Aluminium
Dimension: Width X Span (length of the bearing bar)
Bearing Type: Flat or Serrated
Bearing Bar (Depth X Thickness)
Spacing of the bearing bars
Cross Bar Diameter & style (squre twisted or round bar)
Cross Bar Pitch
With End bands or Not
Finish: galvanized, powder or PVDF
QUANTITY (very important for the cost)
If need C.F.R offer, just let us the Destination Sea Port.
