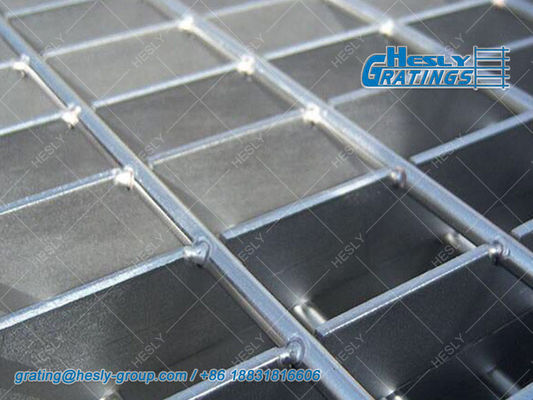

304 stainless steel grating

Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types "WS" (welded stainless grating), "DTS" (dovetail stainless pressure locked) and "SLS" (swage locked stainless). Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at 4" or 2" on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.

Stainless steel grating has good corrosion resistance, so ti is widely used in severe corrosive environments, just like chemical industry, food processing industry and offshore oil drilling platform. Stainless steel grating is available in forge welded or press locked with many load bar sizes. The most common material is SUS304, however SUS316 or SUS316L is also available. 304 stainless steel provide excellent balance resistance and workability. 316 stainless steel is better corrosion, pitting resistance and higher strength at elevated temperatures. 316L is extra low carbon variation of 316 to avoid carbide precipitation due to weld.


Mill Finish - Stainless Steel Material Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration.	Electro-Polished A bright chrome-like appearance achieved by immersion in chemicals that clean and “polish” the base metal.

Common Specifications - Welded Bar Grating

Reference Photos - HESLY Steel Bar Grating

AISI304 Steel Grating China Factory	304 Pressure Locked Grating Supplier	316 Welded Bar Grating Factory Sales



Steel Clips for Steel Grating

Steel Grating Clips	Steel Bar Grating Clips	Steel Grating Clips

Package and Delivery

AISI304 Welded Bar Grating Exporter	AISI316 Bar Grating Manufacturer	Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Required Information for a formal quotation   Material: Mild Carbon, 304/316 stainless steel, Aluminium Dimension: Width X Span (length of the bearing bar) Bearing Type: Flat or Serrated Bearing Bar (Depth X Thickness) Spacing of the bearing bars Cross Bar Diameter & style (squre twisted or round bar) Cross Bar Pitch With End bands or Not Finish: galvanized, powder or PVDF QUANTITY (very important for the cost) If need C.F.R offer, just let us the Destination Sea Port.



Contact us for a FREE prompt quotation !
