HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales

HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales
HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales HESLY Galvanised Steel Bar Grating | High Load Capacity Grating | 80μm zinc layer | China Grating Factory sales
Basic Information
Place of Origin: EON-HESLY METAL MESH, Anping China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: G505/30/100
Minimum Order Quantity: 10 SQM
Price: USD 10.00 to 380.00/ SQM
Packaging Details: In bulk or pallet
Delivery Time: 12 days/20' container
Payment Terms: T/T, L/C at sight, D/P at sight, Western Union
Supply Ability: 300SQM/day
Get Best Price Contact Now
Material: Low Carbon Steel, Stainless Steel Bearing Bar Style: Flat / Serrated / "I" Cross Section
Technical: Welded & Pessure Locked/ Swaged Locked Bearing Bar Pitch: 20mm To 200mm
Cross Bar Pitch: 30mm To 200mm Surface Treatment: Galvanised / Powder Coated / Fluorocarbon Paint
Max Length: 6000mm

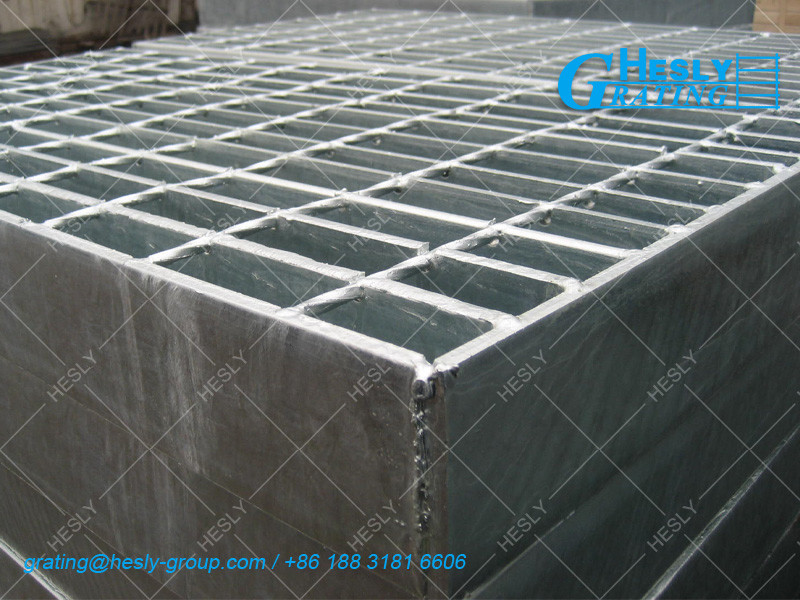

Galvanised Metal Bar Grating ( China Grating Factory)

Welded Steel Grating (Metal bar grating) can be defined as a series of metal bars positioned vertically, placed an equal distance apart and joined by cross members to form a rectangular or reticuline pattern. Typically manufactured from mild carbon steel, 6000 series aluminum and 300 series stainless steels, bar gratings are also available in specialty metal alloys to suit nearly any application

Type of Bearing Bars

Specify the type of grating required by reference of our four main types of products: Plain steel grating, serrated steel grating, I bar steel grating.
flat bearing bar grating serrated bar grating I bar steel grating I bar serrated metal grating
Plain Bearing Bar Serrated Bearing Bar "I" Type Bearing Bar "I" serrated Bearing Bar


Welded heavy duty gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers, and airports. Products are available in a wide range of bar sizes and spacings to accommodate conditions ranging from smaller forklift to large truck or aircraft traffic.

HeslyGrating provides you with galvanized or ungalvanized Press gratings made of carbon mild steel (Q235), other materials such as stainless steel gratings from quality AISI 304 (1.4301) and AISI 316L (1.4404).
You will receive a competent and reliable technical advice.

Antislip version of Heavy Duty Steel Grating

When need slip resistance there are different versions. The anti-slip combination of bearing and cross-bars have an influence on the corresponding class (R10-R13).


Type 1 Serrated bearing bars + serrated cross-bars
Type 2 Serrated bearing bars ONLY
Type 3 Serrated Cross Bars ONLY

Load Capacity of Heavy Duty Steel Grating

Important ! heavy duty steel grating factory



Materials & Finishes

Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.

Common Specifications Sheet - HESLY Steel Grating

Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50   G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Reference Photos - HESLY Bar Grating Sair Treads

Hot dipped galvanized steel grating heavy duty steel bar grating factory sales China China Steel Bar Grating High quality
Heavy Duty Steel Bar Grating Factory H.T Galvanized Steel Grating Supplier HESLY Metal Bar Grating



Package and Delivery

HESLY Welded Bar Grating Factory Heavy Duty Pressure Locked Grating HESLY Steel Grating
Heavy Duty Steel Grating Supplier Pressure-locked Steel Grating Container Loading



Contact us for a FREE prompt quotation !
