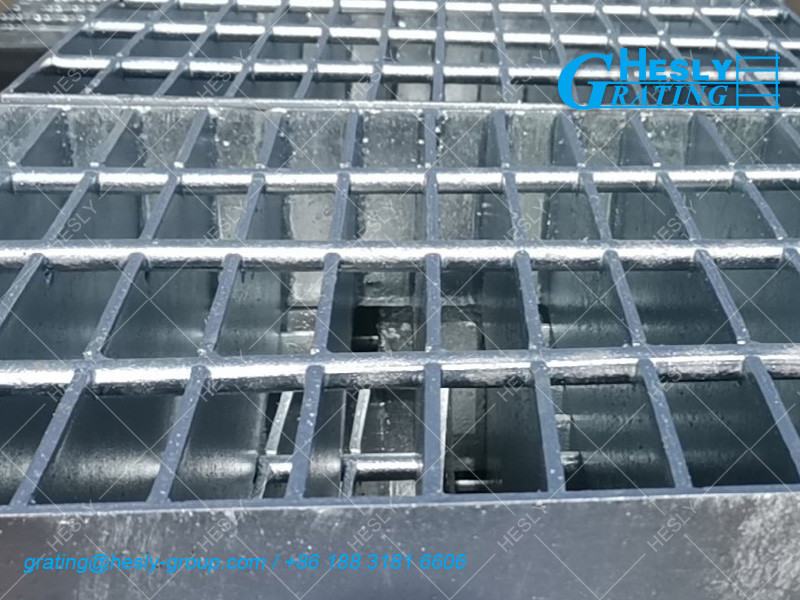

35micron meter galvanized coating Steel Grating | 40X5mm bearing bars | China Factory Sales - HeslyGrating

Welded Steel Grating (Metal bar grating) can be defined as a series of metal bars positioned vertically, placed an equal distance apart and joined by cross members to form a rectangular or reticuline pattern. Typically manufactured from mild carbon steel, 6000 series aluminum and 300 series stainless steels, bar gratings are also available in specialty metal alloys to suit nearly any application

BEARING BARS

The vertically positioned bars are designated as the bearing bars. These bars range in size from 3/4"x1/8" for light pedestrian traffic to 7"x1/2" for extreme vehicular loads. Typically, the spacing of the bearing bars is indicated in sixteenths of an inch, measured from the center of one bar to the center of the adjacent bar. This center-to-center or "on center" spacing ranges from 7/16" to 19/16"(1-3/16") on standard grating products. Standard gratings are also available with wider spacings providing even greater open area, but should not be specified without consulting the manufacturer. Heavy Duty grating products are commonly manufactured with bearing bar spacings ranging from 15/16" to 38/16"(2-3/8") on center.

CROSS BARS

The bars used to secure the position of the bearing bars are commonly designated as the cross bars. Cross bar profiles vary according to the method of assembly and material selected. As with bearing bars, cross bar spacing is measured as "on center" spacing. The customary cross bar spacing is 4" on center. On special order, 2" on center and other special spacings are also available.


The Hesly Steel grating is available in various material, such as Mild Carbon Steel, Stainless steel and Aluminum alloy. Among them, Mild carbon steel grating is the most cost effective and economical type, and hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability. And it is the most widely used in both industrial, commercial and residential applications.

Type of Bearing Bars

Plain Bearing Bar	Serrated Bearing Bar	"I" Type Bearing Bar	"I" serrated Bearing Bar

Carbon Steel Finish Options

Bare Steel Mill finished carbon steel bars without additional coating. Will show discolorationfrom welding and fabrication. Subject to rusting.	Hot Dip Galvanized Zinc coating applied in accordance with ASTM A123. Provides long lasting corrosion resistance.	Powder Coating One coat of HeslyGratings' standard coating. Stand colors are green, black, red, and blue etc.	Other Finishes: PVDF etc Specialty coatings may be specified in a wide range of colors. Some options include PVDF, painting, or epoxy paints.

Load Capacity of Heavy Duty Steel Grating

Important ! The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability.



Applications of Steel Gratings

This is our project of steel grating ,it can be used to many aspects just like:
platform	trestle	trend	fence	equipment walk way
pavement	channel over	manhole cover	trash rack	mentance platform
foot bridge	scaffold	ladder	storage shelf	marine platform

Common Specifications Sheet - HESLY Steel Grating

Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
			20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
		50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
		50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
			32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
		50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
		50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Reference Photos - HESLY Steel Bar Grating

Serrated Bar Grating Sheet	Anti skidding bar grating	Serrated Bar Grating China



Steel Clips for Steel Grating

Steel Grating Clips	Steel Bar Grating Clips	Steel Grating Clips

Package and Delivery

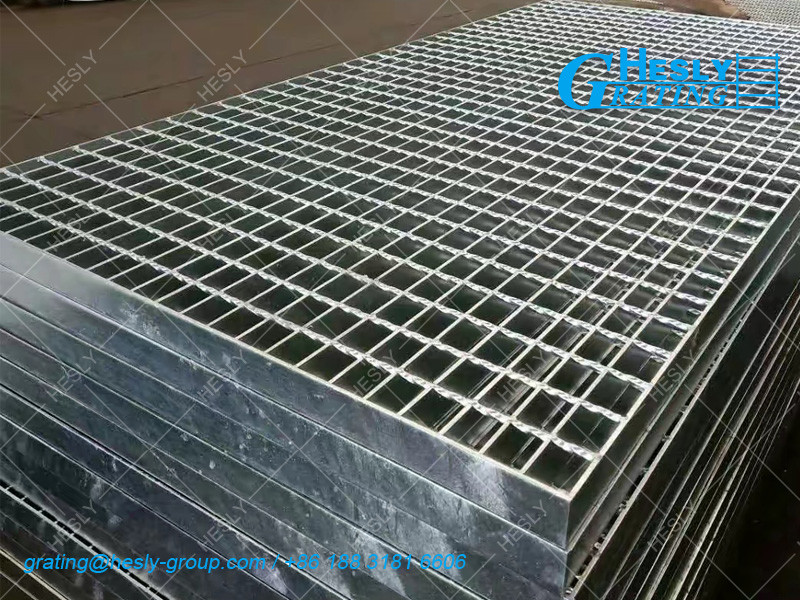

Hot Dipped Galvanised Bar Grating	Welded Bar Grating Exporter	Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Required Information for a formal quotation   Material: Mild Carbon, 304/316 stainless steel, Aluminium Dimension: Width X Span (length of the bearing bar) Bearing Type: Flat or Serrated Bearing Bar (Depth X Thickness) Spacing of the bearing bars Cross Bar Diameter & style (squre twisted or round bar) Cross Bar Pitch With End bands or Not Finish: galvanized, powder or PVDF QUANTITY (very important for the cost) If need C.F.R offer, just let us the Destination Sea Port.
