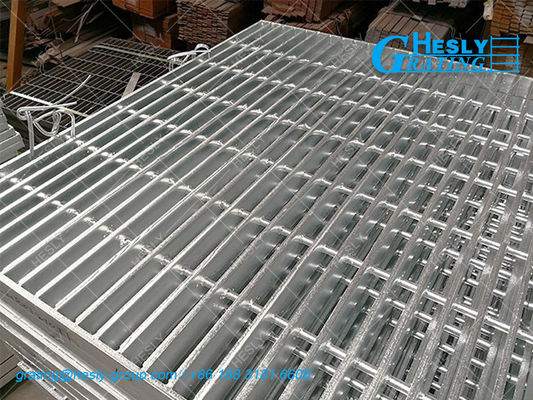

Hot Dipped Galvanized Welded Steel Grating | 50X5mm load bar | 8mm cross bar | 10mm bar pitch | Hesly Grating China

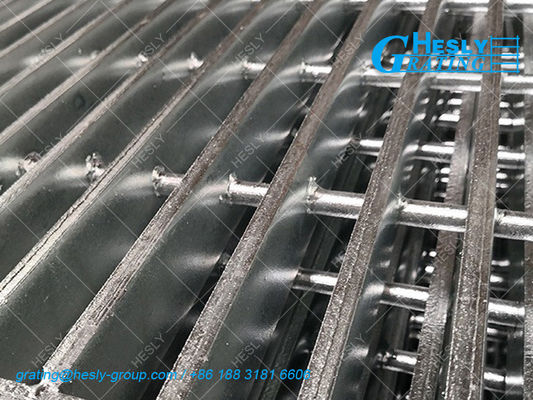

Welded Steel Bar Grating is the workhorse of the industrial flooring market and has served industry for decades.Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.

Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel, 6000 series aluminum, and 300 series stainless steels.

Type of Bearing Bars

Specify the type of grating required by reference of our four main types of products: Plain steel grating, serrated steel grating, I bar steel grating.


Plain Bearing Bar	Serrated Bearing Bar	"I" Type Bearing Bar	"I" serrated Bearing Bar

Carbon Steel Finish Options

Bare Steel

Mill finished carbon steel bars

without additional coating. Will

show discolorationfrom welding

and fabrication. Subject to rusting.

Hot Dip Galvanized

Zinc coating applied in accordance

with ASTM A123. Provides long

lasting corrosion resistance.

Powder Coating

One coat of HeslyGratings'

standard coating. Stand colors are

green, black, red, and blue etc.

Other Finishes: PVDF etc

Specialty coatings may be specified

in a wide range of colors.
Some options include PVDF,

painting, or epoxy paints.

Load Capacity of Heavy Duty Steel Grating

Important !
The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability.

Applications of Steel Gratings

This is our project of steel grating ,it can be used to many aspects just like:
platform	trestle	trend	fence	equipment walk way
pavement	channel over	manhole cover	trash rack	mentance platform
foot bridge	scaffold	ladder	storage shelf	marine platform

Common Specifications Sheet - HESLY Steel Grating

Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
Series	Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
Series	Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Reference Photos - HESLY Steel Bar Grating


Welded Bar Grating Factory	Pressure Locked Bar Grating	Serrated Bar Grating China

**Steel Clips for Steel Grating**

Steel Grating Clips	Steel Bar Grating Clips	Steel Grating Clips

Package and Delivery


Hot Dipped Galvanised Bar Grating	Welded Bar Grating Exporter	Container Loading

How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.

Required Information for a formal quotation

Material: Mild Carbon, 304/316 stainless steel, Aluminium
Dimension: Width X Span (length of the bearing bar)
Bearing Type: Flat or Serrated
Bearing Bar (Depth X Thickness)
Spacing of the bearing bars
Cross Bar Diameter & style (squre twisted or round bar)
Cross Bar Pitch
With End bands or Not
Finish: galvanized, powder or PVDF
QUANTITY (very important for the cost)
If need C.F.R offer, just let us the Destination Sea Port.

Contact us for a FREE prompt quotation !
