Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY

Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY
Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY
Basic Information
Place of Origin: HeslyGrating, CHINA
Brand Name: HESLY
Certification: ISO9001/ABC/USCG
Model Number: HFRP-5025
Minimum Order Quantity: 50 square meters
Price: USD29-USD67.00
Packaging Details: Pallet
Delivery Time: 15days/20'GP
Payment Terms: T/T, L/C at sight
Supply Ability: 300 m2/day
Get Best Price Contact Now
Material: GRP Thickness: 50mm
Hole: Square 25X25mm Dimension: 1220X3660, 1007X4047mm Etc
Color: Green, Red, Yellow, Orange, Grey, Blue Etc

Mini Mesh Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY

—— —— a wide range of colors and sizes available at the best prices

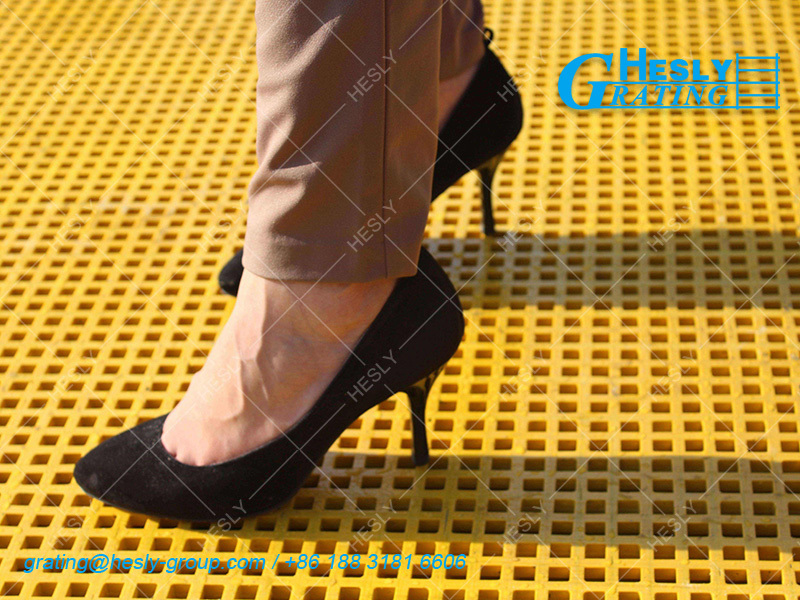

Mini Mesh grating is an ADA compliant mesh size. This small mesh also prevents small tools and other objects from falling through the grating, protecting personnel or equipment below. The ½“ mesh size openings allow for greater foot coverage (eliminating foot fatigue), high heel shoe traffic, and a smoother rolling surface for wheelchairs, carts, and hand trucks.

When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application

Molded Grating Resin Systems

HeslyGrating offers a choice of five resin systems for fiberglass moulded grating to accommodate different requirements of each custom application, all MaxGrate resin systems have a class 1 flame spread rating of 25 or less per ASTM E-84.



Resin Type Resin Base Description Corrosion Resistence Flame Spread Rating Usage Temp
O Orthophthalic Polyester Morderate Grade Corrosion Resistance Fire Retardant
Cost-effective alternative to vinyl ester and isophthalic polyester products.		 Good Astm E-84 Class 1 25 Or Less -50-60
I Isophthalic Polyester Industrial Corrosion
Resistance Fire Retardant
A good choice for environments where chemical splashes and spills are a common occurrence.		 Very Good Astm E-84 Class 1 25 Or Less -50-90
IF Isophthalic Polyester Food Grade Corrosion Resistance Fire Retardant
Ideally suited for food and beverage industry environments that are exposed to harsh cleaning chemicals.		 Very Good ASTM E-84 Class 1 25 Or Less -50-90
V Vinyl Ester Superior Corrosion Resistance High Fire Retardant.
Developed to withstand the harsh chemical environments found in chemical, waste treatment, and metal plating plants.		 Excellent ASTM E-84 Class 1 25 Or Less -50-110
VH Vinyl Ester Superior Corrosion Resistance High Fire Retardant Excellent ASTM E-84 Class 1 10- Or Less -50-110
P Phenolic The best choice for applications requiring maximum fire resistance and low smoke emissions such as oil refineries, ships, and train decks. Excellent ASTM E-84 Class 1 10- Or Less
Material used:
- Continuous fibreglass E-glass direct roving.
- Five resin systems for option to meet your applications.
- AL(OH)3 powder as the stuffing material to flame retardant



Standard FRP Grating Surface

When the panel naturally cured, the surface shall have a concave surface for slip resistance. A standard grit surface is made through a secondary operation by sanding slica sand on the top surface of grating to provide long lasting slip resistant surface.

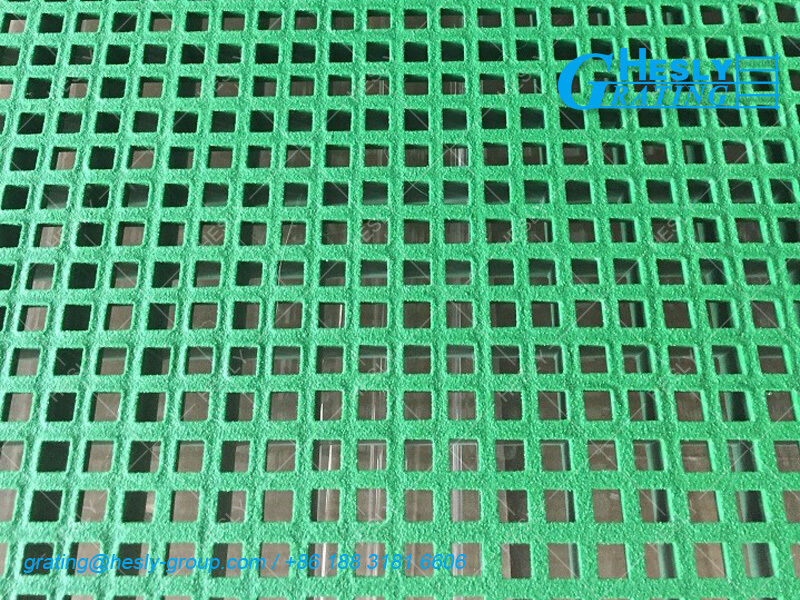

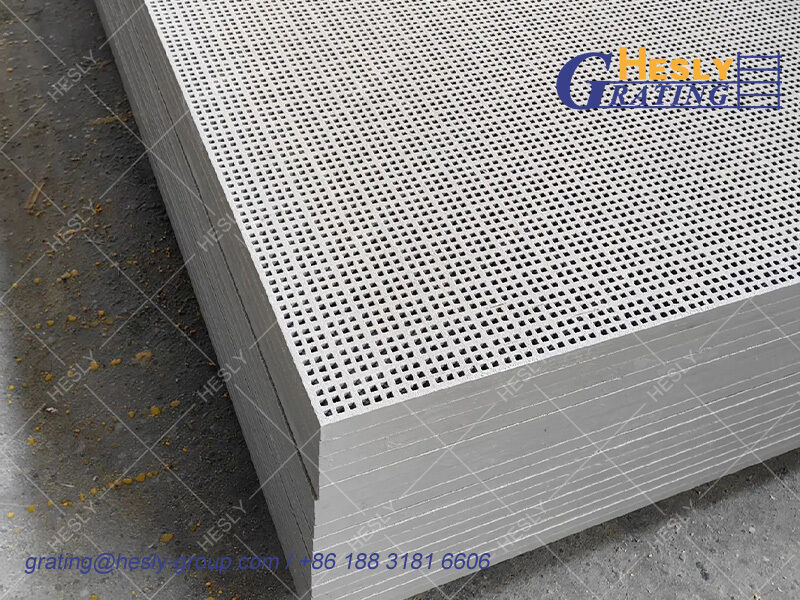

Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 0 Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 1
Smooth Surface

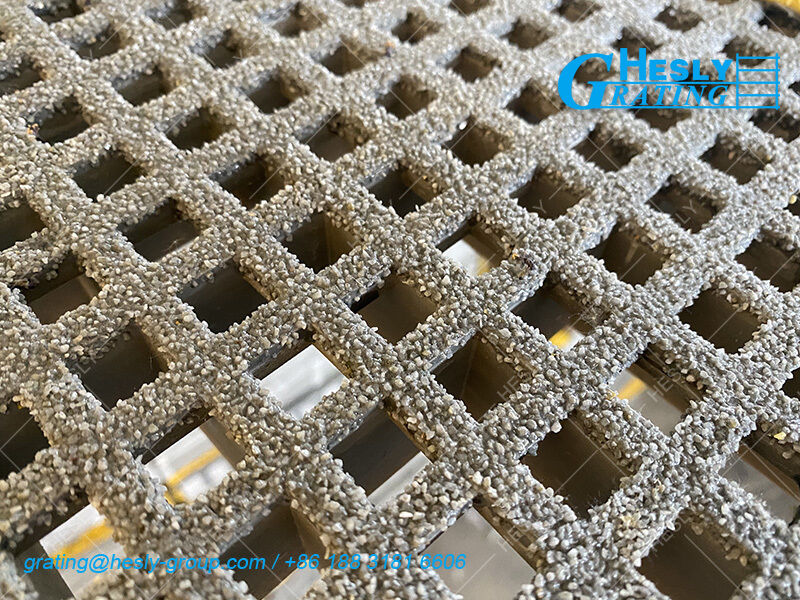

The smooth surface grating is flat and non slid resistance		 Sanding/Gritted Surface
FRP gratings with sanding surface have super anti-slip characteristic

Molded Grating Characteristics

Corrosion Resistance   Ten premium-grade resin system
Slip Resistance   Meniscus or applied grit surfaces
Low Maintenance   No scraping, sandblasting or painting required
Fire Retardant   Flame spread rating of 25 or less (per ASTM E-84), meets extinguishing requirements of ASTM D-635
High Strength-to-weigth Ratio   Less than half the weight of steel grating
Impact Resistant   Withstands common impacts with little structural damage and no failure

Specification Sheet

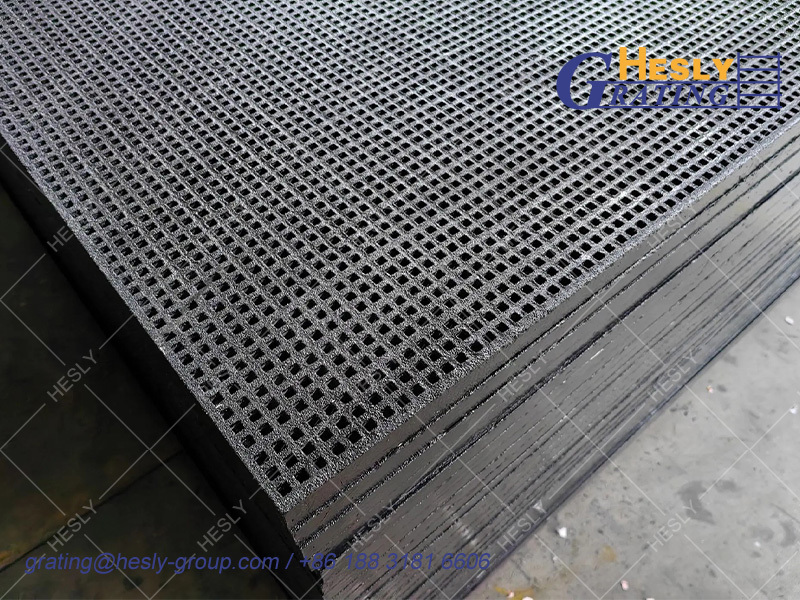

Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 2



Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 3

Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 4 Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 5 Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 6
Molded Grating Gritted Surface Fiberglass Grating China Factory White FRP Grating Panel
Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 7 Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 8 Mini Mesh FRP Molded Grating, 50mm height, 25*25mm holes, 1220X3660mm, smooth Surface, China HESLY 9
FRP Molded Grating Fine Mesh FRP Molded Grating FRP Molded Grating Mesh
