GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China

GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China
GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China
Basic Information
Place of Origin: HESLY GROUP, Anping,China
Brand Name: HESLY
Certification: ISO9001/ABS/USCG
Model Number: HFRP-3838
Minimum Order Quantity: 50 SQM
Price: Negotiated according to the order
Packaging Details: pallet or in bulk
Delivery Time: According to the order
Payment Terms: T/T, L/C at sight
Supply Ability: 2000 m2/day
Get Best Price Contact Now
Material: FRP Thickness: 38mm THK
Hole: Square 38X38mm Dimension: 1220X3660, 1007X4047mm Etc
Color: Green, Red, Yellow, Orange, Grey, Blue Etc

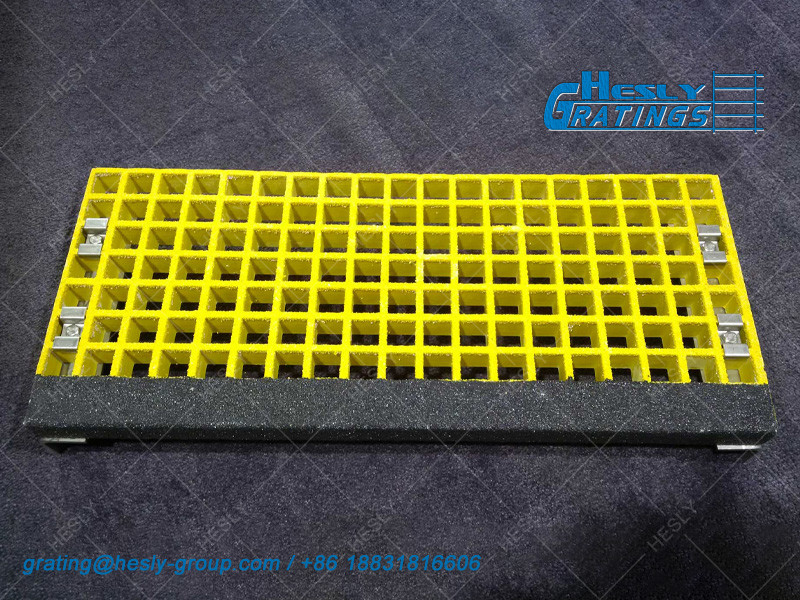

GRP Moulded Grating, 38mm thickness, 38X38mm square hole, Gritted Surface, Yellow, 1X1m sheet, HeslyGrating-China

—— —— a wide range of colors and sizes available at the best prices



HESLY FRP GratingFiberglass Reinforced Plastic Molded Grating products are known for their ability to provide corrosion resistance in the harshest environments and chemical exposures. Unlike metal and wood, FRP products will not rust or corrode and will continue to maintain structural integrity over time.

Molded Fiberglass Gratings are used for their high strength, corrosion resistance, light weight, long life and safety. All FRP grating is made to meet the highest international standards.

Molded fiberglass grating also has many advantages over steel grating for performance and cost effectiveness. With a much higher strength-to-weight ratio, molded fiberglass grating is easy to handle, making for quick installation.

Molded Grating Resin Systems

HESLY FRP Grating Trench and Drain Grates are available in two standard resin systems. Each providing different levels of corrosion protection. Both resin systems meet Class 1 Flame Spread Rating per ASTM E-84 test standards.

Polyester: A premium-grade isophthalic polyester resin system that provides excellent corrosion protection. Standard colors: Dark Gray, Light Gray, Yellow, and Green. Equivalent to Fibergrate Corvex and Strongwell Duragrate PP.

Vinyl ester: A chemically resistant system that provides the highest level of corrosion protection. Standard colors: Yellow, Dark Gray, and Orange. Equivalent to Fibergrate Vi-Corr and Strongwell Duragrate VE.


Features of HESLY FRP Grating

  • Excellent Corrosion and Chemical Resistance
  • Great tensile strength and impact resistance
  • Slip resistance
  • Light weight
  • Fire Retardant
  • Electric insulation
  • Esay installation and facrication
  • Anti-aging and Long life service
  • Beautiful and colorful for option
  • Low maintenance

Molded Graing Resin Systems

HeslyGrating offers a choice of five resin systems for fiberglass moulded grating to accommodate different requirements of each custom application, all MaxGrate resin systems have a class 1 flame spread rating of 25 or less per ASTM E-84.



Resin Type Resin Base Description Corrosion Resistence Flame Spread Rating Usage Temp
O Orthophthalic Polyester Morderate Grade Corrosion Resistance Fire Retardant
Cost-effective alternative to vinyl ester and isophthalic polyester products.		 Good Astm E-84 Class 1 25 Or Less -50-60
I Isophthalic Polyester Industrial Corrosion
Resistance Fire Retardant
A good choice for environments where chemical splashes and spills are a common occurrence.		 Very Good Astm E-84 Class 1 25 Or Less -50-90
IF Isophthalic Polyester Food Grade Corrosion Resistance Fire Retardant
Ideally suited for food and beverage industry environments that are exposed to harsh cleaning chemicals.		 Very Good ASTM E-84 Class 1 25 Or Less -50-90
V Vinyl Ester Superior Corrosion Resistance High Fire Retardant.
Developed to withstand the harsh chemical environments found in chemical, waste treatment, and metal plating plants.		 Excellent ASTM E-84 Class 1 25 Or Less -50-110
VH Vinyl Ester Superior Corrosion Resistance High Fire Retardant Excellent ASTM E-84 Class 1 10- Or Less -50-110
P Phenolic The best choice for applications requiring maximum fire resistance and low smoke emissions such as oil refineries, ships, and train decks. Excellent ASTM E-84 Class 1 10- Or Less
Material used:
- Continuous fibreglass E-glass direct roving.
- Five resin systems for option to meet your applications.
- AL(OH)3 powder as the stuffing material to flame retardant

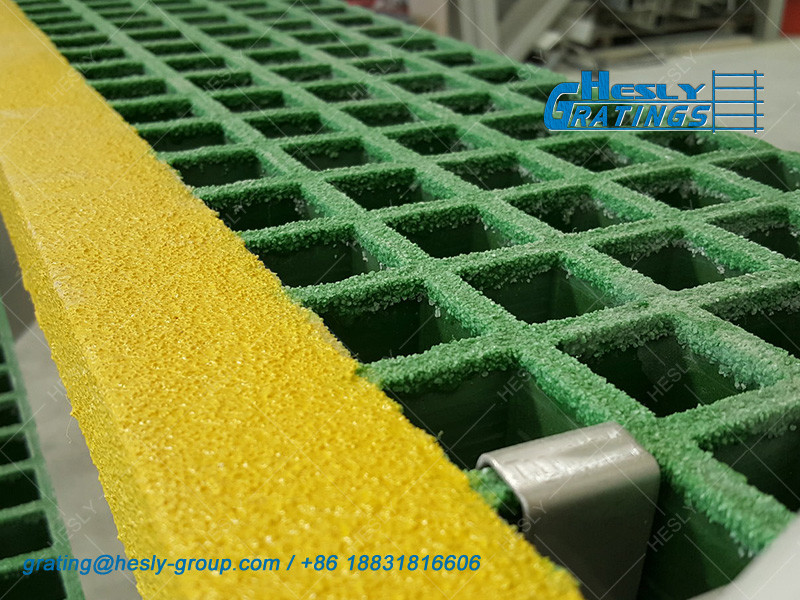

Standard FRP Grating Surface

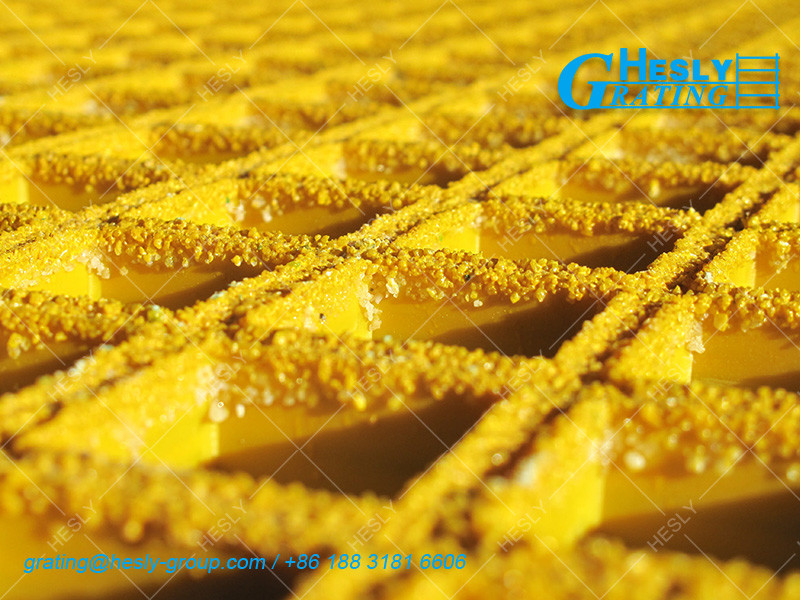

When the panel naturally cured, the surface shall have a concave surface for slip resistance. A standard grit surface is made through a secondary operation by sanding slica sand on the top surface of grating to provide long lasting slip resistant surface.



smooth furface FRP Grating gritted surface Molded FRP Grating
Smooth Surface
The smooth surface grating is flat and non slid resistance		 Sanding/Gritted Surface
FRP gratings with sanding surface have super anti-slip characteristic


HeslyGrating FRP Covered Grating is a one-piece molded grating, combing the solid surface of plate on the top of molded grating. Covered grating is ideal for applications where require no open mesh of the grating. Whether over a food process or for reducing fumes and odors, covered grating meets the needs for solid surface decking that is both corrosion resistant and slip resistant. It is also used in areas where cart wheels or shoe heels might have difficulty if over standard open mesh grating.
Covered grating is available in a variety of thickness. Standard plate thickness is 3mm, other thickness is available as per customer's special request.


decorative cover FRP Grating Gritted Cover plate FRP Grating
Decorative Checker Plate
The decorative pattern surface makes the FRP gratings anti-skid and more beautiful.		 Gritted Top Cover
The gritted top covered surface can not only anti skid
but also enhance the strength.




Rich Color For Option

HeslyGrating offers wide color selections for FRP molded grating as well as covered grating. The followings are some of the most popular colors that we may have stock and keeping continuously production. We can closely match any color in the Ral Color Chart Page or provided color chips.

Rich Color Hesly FRP Grating



Fiberglass Grating Clips



Saddle Clip for FRP Grating C clips for FRP Grating FRP Grating L clips
Saddle Clip "C" Clip "L" Clip
M clip FRP Grating C clips Fiberglass Grating L clip

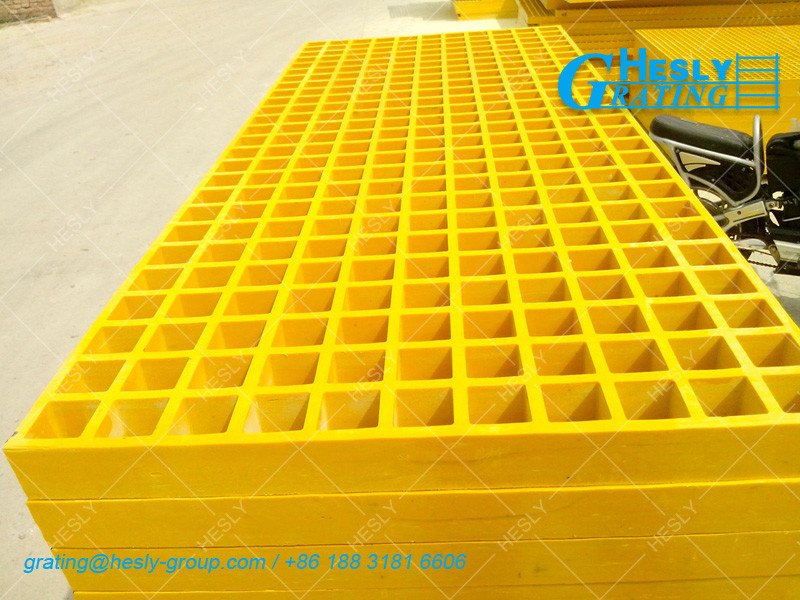

Photo Gallery

FRP Grating Chinese factory GRP Grating Sheet grey molded grating
Molded FRP Grating GRP Molded Grating Fiberglass Grating

Package and Delivery

GRP Grating China Supplier fiberglass molded grating China HESLY FRP Grating China
GRP Grating China Exporter GRP Grating China Supplier FRP Grating China Factory
