Place of Origin: | HeslyGrating-China |
---|---|
Brand Name: | HESLY |
Certification: | ISO9001:2000 |
Model Number: | G505/30/100 |
Minimum Order Quantity: | 20 ㎡ |
Price: | USD 50/㎡ |
Packaging Details: | bundle |
Delivery Time: | according the the order |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000㎡/month |
Material: | Low Carbon Steel / 300 Series Stainless Steel | Type: | Welded Bar Grating |
---|---|---|---|
Anti-corrosion: | H.D Galvanized / PVDF / Powder | Dimension: | Custom-made |

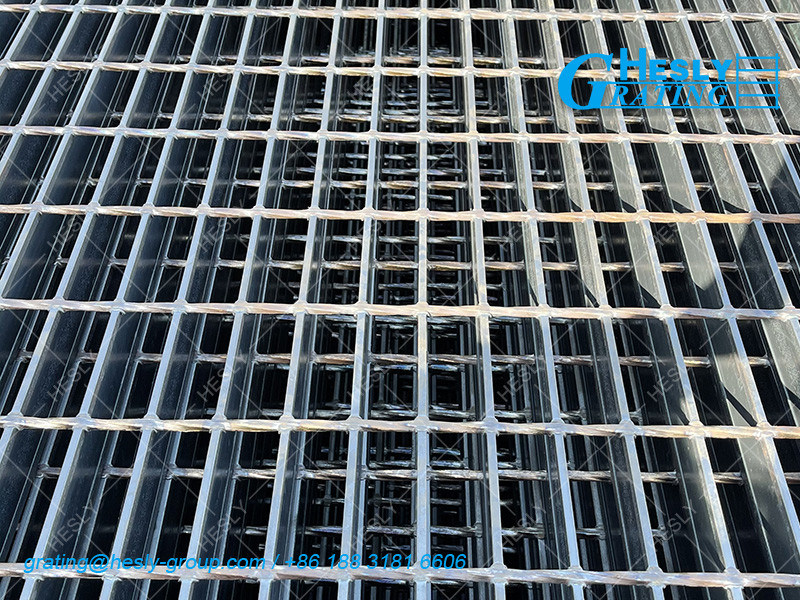

Galvanized Steel Bar grating, also known as Welded Steel Bar Grate is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel Bar Grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements. Available in either smooth top or serrated for slip resistance.
The Hesly Steel grating is available in various material, such as Mild Carbon Steel, Stainless steel and Aluminum alloy. Among them, Mild carbon steel grating is the most cost effective and economical type, and hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability. And it is the most widely used in both industrial, commercial and residential applications.
Plain Bearing Bar | Serrated Bearing Bar | "I" Type Bearing Bar | "I" serrated Bearing Bar |
Carbon Steel Finish Options
Bare Steel Mill finished carbon steel bars without additional coating. Will show discolorationfrom welding and fabrication. Subject to rusting. |
Hot Dip Galvanized Zinc coating applied in accordance with ASTM A123. Provides long lasting corrosion resistance.
|
Powder Coating One coat of HeslyGratings' standard coating. Stand colors are green, black, red, and blue etc. |
Other Finishes: PVDF etc Specialty coatings may be specified in a wide range of colors. painting, or epoxy paints. |
Load Capacity of Heavy Duty Steel Grating
Important ! The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability. |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Serrated I Bar Grating Factory | Welded Bar Grating Distributor | I bar Metal Grating |
Steel Grating Clips | Steel Bar Grating Clips | Steel Grating Clips |
Hot Dipped Galvanised Bar Grating | Welded Bar Grating Exporter | Container Loading |
Just let us know below the information marked on the drawing.
Required Information for a formal quotation
|
Contact us for a FREE prompt quotation !
