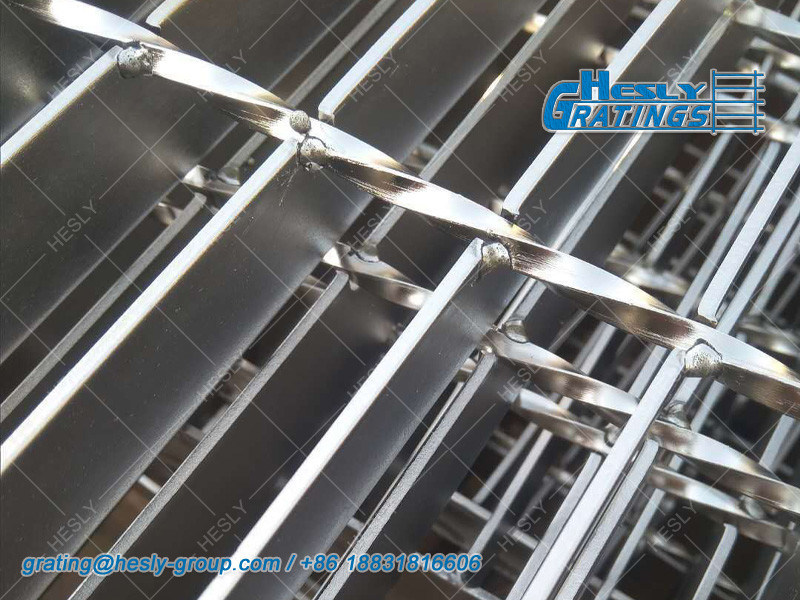

AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA

AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA
AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar | 30mm pitch - HeslyGrating, CHINA
Basic Information
Place of Origin: HeslyGrating-China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: G303/40/100S
Minimum Order Quantity: 50sqm
Price: Negotiated as per RFQ
Packaging Details: Pallet or In bulk
Delivery Time: 15days/20'GP
Payment Terms: T/T, L/C
Supply Ability: 500㎡/day
Get Best Price Contact Now
Material: AISI316 Bearing Bar: 30X3mm
Type: Welded Grating Finish: Polished
Dimension: Custom-made

AISI304 Stainless Steel Bar Grating | Polished Finish | 40x5mm load bar - HeslyGrating, CHINA


Stainless steel grating has good corrosion resistance, so ti is widely used in severe corrosive environments, just like chemical industry, food processing industry and offshore oil drilling platform. Stainless steel grating is available in forge welded or press locked with many load bar sizes. The most common material is SUS304, however SUS316 or SUS316L is also available. 304 stainless steel provide excellent balance resistance and workability. 316 stainless steel is better corrosion, pitting resistance and higher strength at elevated temperatures. 316L is extra low carbon variation of 316 to avoid carbide precipitation due to weld.


Stainless Steel Finishes

As produced, stainless steel products typically display discoloration caused by the introduction of heat during welding, cutting or grinding processes. If appearance is important to your application, consideration should be given to secondary cleaning or electro-polishing.
304 stainless steel bar grating China factoryAISI316 Stainless steel grating China HESLY
Mill Finish - Stainless Steel Material
Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration.

Electro-Polished
A bright chrome-like appearance achieved by immersion in chemicals that clean and “polish” the base metal.


Common Specifications - Welded Bar Grating

Series

Pitch of Bearing bar

Cross-bar Pitch

Specification of bearing bar load width×thickness

20×3

25×3

32×3

40×3

20×5

25×5

  1

  30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

  2

  40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

3

60

50



G253/60/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50

Series

Pitch of Bearing bar

Cross-bar Pitch

Specification of bearing bar load width×thickness

32×5

40×5

45×5

50×5

55×5

60×5

  1

  30

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100

50

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

  2

  40

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100

50

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

3

60

50

G325/60/50

G405/60/50

G455/60/50

G505/60/50

G555/60/50

G605/60/50




Reference Photos - HESLY Steel Bar Grating

AISI304 WELDED BAR GRATINGAISI304 Pressure Locked Bar GratingAISI304 Stainless Steel Grating China Exporter
AISI304 Steel Grating China Factory304 Pressure Locked Grating Supplier316 Welded Bar Grating Factory Sales




Steel Clips for Steel Grating
steel grating clipsSteel Bar Grating ClipsSaddle Clips for bar grating
Steel Grating ClipsSteel Bar Grating ClipsSteel Grating Clips


Package and Delivery

304 stainless steel grating China Exporter316 stainless steel grating China exporterChina Welded Bar Grating
AISI304 Welded Bar Grating ExporterAISI316 Bar Grating ManufacturerContainer Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Hesly Welded Bar Grating China Factory supplier

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
  • If need C.F.R offer, just let us the Destination Sea Port.
