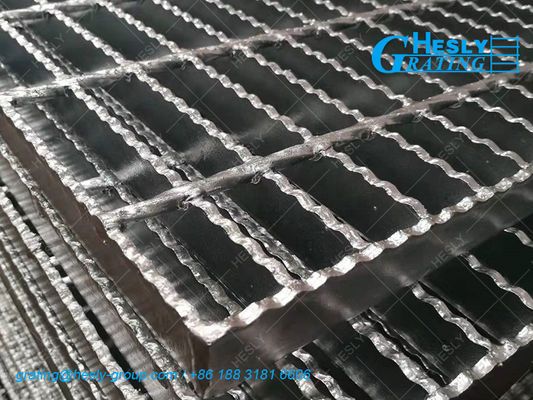

Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY

Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY
Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY Serrated Load Bar Grating | 80micron meter zinc layer | 30X100mm hole | Special Shape | Factory Sales - HESLY
Basic Information
Place of Origin: EON-HESLY METAL MESH, Anping China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: G505/30/100S
Minimum Order Quantity: 50 SQM
Price: USD 10.00 to 380.00/ SQM
Packaging Details: In bulk or pallet
Delivery Time: 12 days/20' container
Payment Terms: T/T, L/C at sight, D/P at sight, Western Union
Supply Ability: 500SQM/day
Get Best Price Contact Now
Material: Low Carbon Steel, Stainless Steel Bearing Bar Style: Serrated
Technical: Welded Bearing Bar Pitch: 20mm To 200mm
Cross Bar Pitch: 30mm To 200mm Surface Treatment: Galvanised / Powder Coated / Fluorocarbon Paint
Max Length: 6000mm

Serrated Bar Steel Grating ( China Grating Factory)


Serrated Bars delivers excellent performance in application areas, which are slippery, oily, moisture filled. They form a sort of anti-slip grating with their non-slip notches offering them a very good grip. They are made using mild carbon steel or stainless steel materials. We offer variety of serrated products in this category such as, normal serrated, serrated interrupted, serrated trapezoid, serrated carrier bar and serrated carrier bar with cross bar. For inclined gangways with a pitch of 10-25 degrees, we also provide grating with tread strips.



Common Specification Sheet - Standard Steel Bar Grating


Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50   G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50



Reference Photos

serrated steel bars serrated bar grating China factory hot dipped galvanised steel bar grating
Serrated Steel Bar Grating (China Factory) Metal Serrated Bar Grating Serrated Bar Grating Supplier
Forge Welded Bar Grating China factory 30X40mm forge welded bar grating China Forge Welded Bar Grating
Forge Welded Bar Grating Factory HD Galvanised Forge Welded Bar Grating Serrated Bar Grating

Steel Clips for Steel Grating
steel grating clips Steel Bar Grating Clips Saddle Clips for bar grating
Steel Grating Clips Type A Steel Grating Clips Type B Saddle Clips



Package and Delivery

Forge Welded Bar grating China exporter Forge Welded Bar grating China exporter Forge Welded Bar grating China exporter
China Steel Grating Factory Forge Welded Bar Grating China Factory Welded Bar Grating Supplier
