Material: Carbon Steel / Stainless Steel / AL Alloy Load Bar: 40X5mm

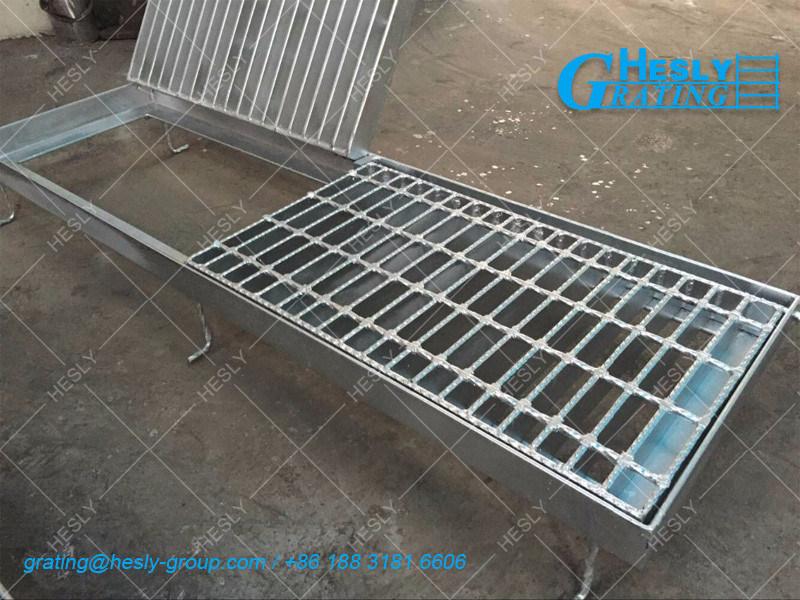

Heavy Duty Ditch Trench Drain Grating Trench Grating Systems Steel Grating for Drain Metal Building Materials Galvanized


trench gratingTrench Grating Systems by EON-HESLY allow the user to combine any of the gratings illustrated below with any of the embed frames in the Embed Frames section of this website. Gratings are available in Standard series for pedestrian loads or Heavy Duty series for vehicular traffic. Unlike cast iron or molded trench products, this flexible system allows the user to specify the exact clear opening ("S" dimension) desired. Because Grating Pacific offers five distinct embed frame profiles, the user can select a frame to meet the exact edge condition desired. Bolting the grates to the frames is optional and must be specified. All gratings are provided with plain surface (the optional serrated surface is also available when specified) and open ends are trench banded to maximize drain capacity. Unless otherwise noted, all trench frames and grating are hot dip galvanized after fabrication in accordance with ASTM Specification A-123. Our most popular systems are listed in the table below, however, this listing in no way completely defines this comprehensive product line.



HeslyGrating trench grate systems combine our most popular bar gratings and embed frames in a complete set for economic, simple installation on construction projects. Systems are available in standard duty for pedestrian loads and heavy duty for demanding vehicular traffic.

HeslyGrating allows the specifier to combine any of our Standard Duty pedestrian grates or Heavy Duty vehicular gratings with any of our popular Embed Frames. Unlike cast iron or molded trench products, this flexible system allows the user to specify the exact clear opening (“S” dimension) desired.

All gratings are provided with plain surface (the optional serrated surface is available when specified) and open ends are trench banded to maximize drain capacity.
Unless otherwise specified, all trench frames and grating are hot dip galvanized after fabrication in accordance with ASTM Specification A123.



Carbon Steel Finish Options

mild carbon steel bar grating China factory sales hot dipped galvanized steel bar grating powder coated steel bar grating PVDF coating welded bar grating

Bare Steel

Mill finished carbon steel bars

without additional coating. Will

show discolorationfrom welding

and fabrication. Subject to rusting.


Hot Dip Galvanized

Zinc coating applied in accordance

with ASTM A123. Provides long

lasting corrosion resistance.





Powder Coating

One coat of HeslyGratings'

standard coating. Stand colors are

green,

black, red, and blue etc.


Other Finishes: PVDF etc

Specialty coatings may be specified

in a wide range of colors.
Some options include PVDF,

painting, or epoxy paints.



Load Capacity of Heavy Duty Steel Grating

Important !
The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability.		 heavy duty steel grating factory



Common Specifications Sheet - HESLY Steel Grating

Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50   G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50


Reference Photos - HESLY Steel Bar Grating

welded bar grating China manufacturer HESLY Steel Bar Grating Factory sales Welded Bar Grating China exporter
Welded Bar Grating China Factory Steel Bar Grating Trench Cover Hot Dipped Galvanized Grating
steel grating trench cover Welded Bar grating drain trench cover Grating Trench Drain China manufacturer
Bar Grating Drain Trench Steel Grating Drainage Cover Gal. Grating Trench




Steel Clips for Steel Grating
steel grating clips Steel Bar Grating Clips Saddle Clips for bar grating
Steel Grating Clips Steel Bar Grating Clips Steel Grating Clips


Package and Delivery

steel bar grating China supplier HESLY Galvanised Bar Grating Metal Bar Grating Exporter
Hot Dipped Galvanised Bar Grating Welded Bar Grating Exporter Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Hesly Welded Bar Grating China Factory supplier

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
