Products

Heavy Duty Steel Grating/Heavy Duty Gratings

Heavy Duty Steel Grating/Heavy Duty Gratings
Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings Heavy Duty Steel Grating/Heavy Duty Gratings
Basic Information
Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY/海斯利
Certification: ISO9001：2008
Model Number: HESLY-Gratings
Minimum Order Quantity: 10 square meters
Price: Negotiated according to the order
Packaging Details: In bulk
Delivery Time: according the the order
Payment Terms: T/T, L/C
Supply Ability: 1000㎡/day
Get Best Price Contact Now
Wire Diameter: 100*10mm Material: Galvanized Steel Wire
Type: Welded Mesh Application: Protecting Mesh
Weave Style: Plain Weave Technique: Welded Mesh

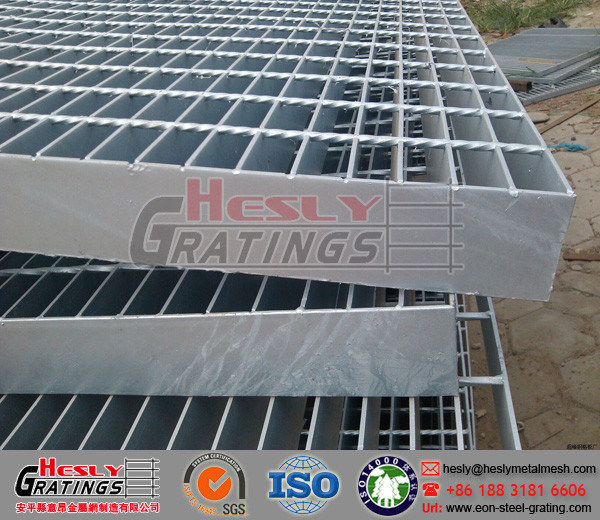

Heavy Duty Steel Grating/Heavy Duty Gratings

heavy duty gratingHeavy-Duty Steel Gratings uses thicker (1/4", 5/16", 3/8") and deeper bearing bars. Heavy-Duty Welded Grating has the strength for heavy-duty load areas such as airfields, highways, industrial plants, truck and bus terminals, parking lots and railroad yards. Common uses are flooring, driveways, subway and tunnel ventilation grilles, curb inlet grates, ramps, docks, etc.

Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings.



It is a sturdy grating to carry loads and maintain the same level over many years of use. Whenever rolling wheel loads are to be used over the grating, we recommend that the grating be load banded to add lateral strength. Serrations are available on bars up to 3/8" thick to provide additional traction for rolling loads.

Standard heavy-duty bar grating is resistance-welded for durability, strength and safety using an automated electric/hydraulic welding process. High temperatures, combined with high pressure, fuse the bearing bars and cross bars together to form a permanent joint.

Also, EON-HESLY is one of the few manufacturers that has the capability of providing you with those "really big" grates.  If your application is not adequately addressed by these load conditions, please contact our engineering department and we will gladly assist in the selection of a heavy duty grating to satisfy your specific needs.

Materials & Finishes

Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.
heavy duty grates  galvanized bar grating
hot dipped galvanised welded bar grate  welded bar grating

Contact HESLY for more details or FREE quote... ...
