Place of Origin: | EON STEEL GRATING FACTORY, China |
---|---|
Brand Name: | HESLY |
Certification: | ISO9001:2008 |
Model Number: | G405/30/100 |
Minimum Order Quantity: | 20 ㎡ |
Price: | Negotiated according to the order |
Packaging Details: | bundle |
Delivery Time: | according the the order |
Payment Terms: | T/T, L/C |
Supply Ability: | 8days/20'GP |

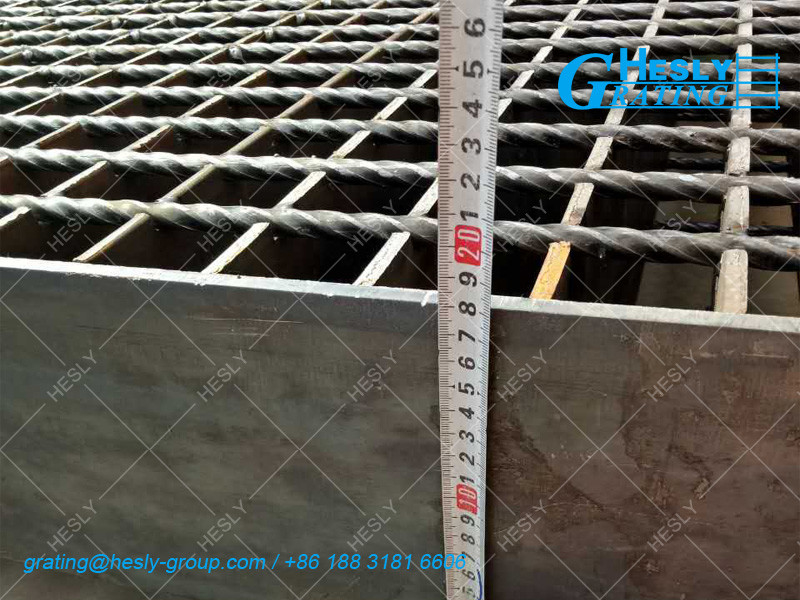

Wire Diameter: | 40*5mm | Material: | Carbon Steel Strip |
---|---|---|---|
Type: | Welded Mesh | Application: | Sairs, Walkway,platform |
Weave Style: | Plain Weave | Technique: | Welded Mesh |

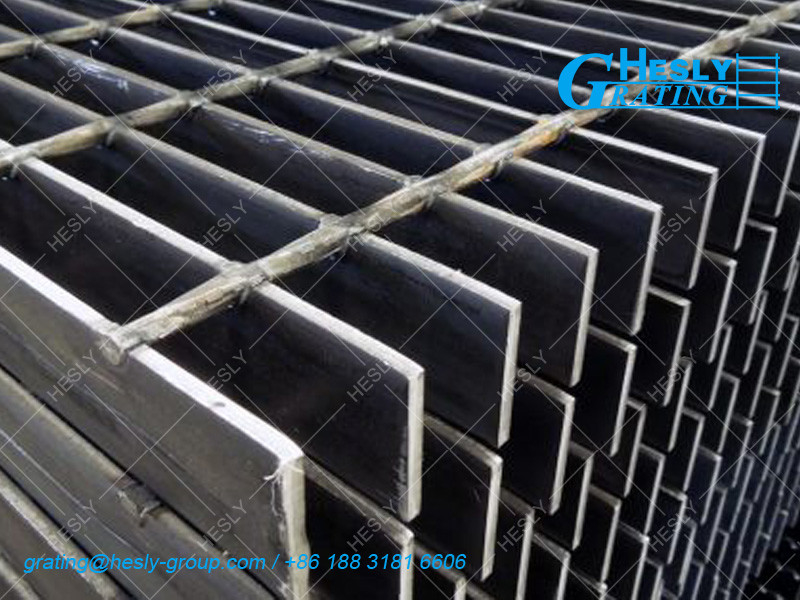

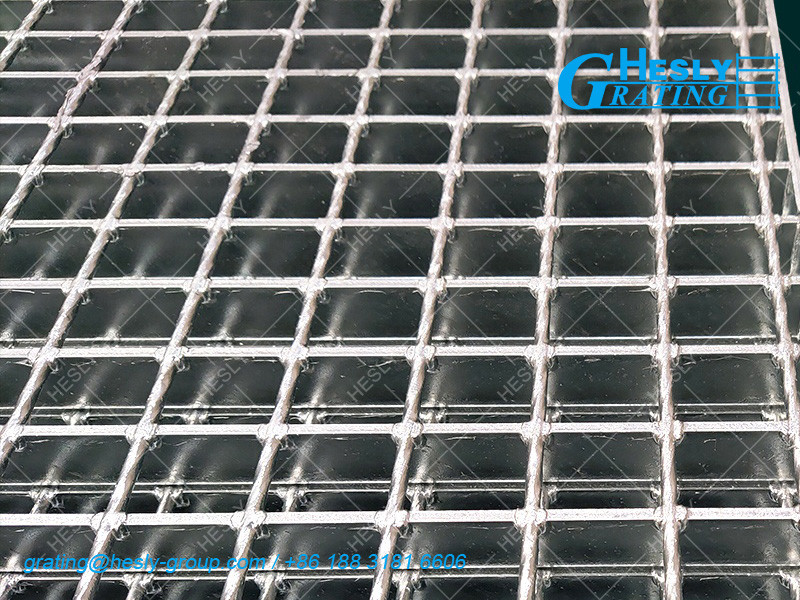

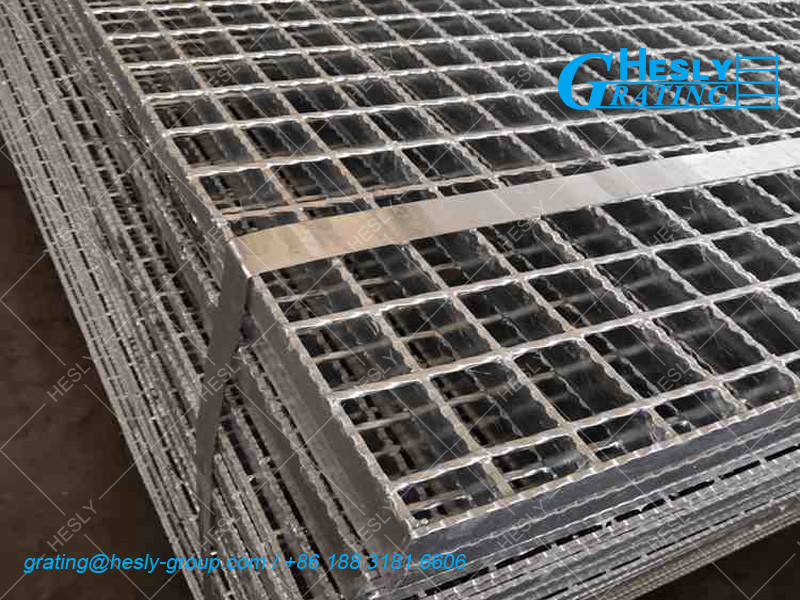

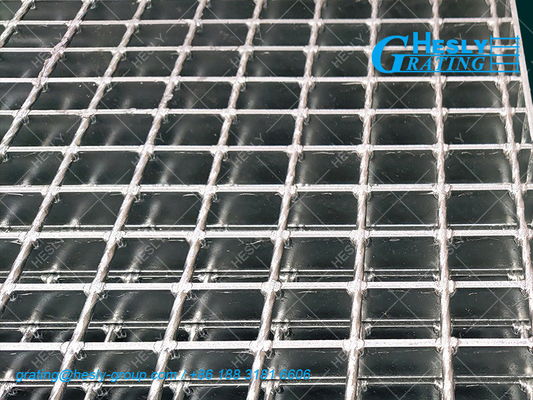

Welded Steel Bar Grating is the workhorse of the industrial flooring market and has served industry for decades.Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.
Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel, 6000 series aluminum, and 300 series stainless steels.
A).Type of Grating
![]() |
![]() |
![]() |
![]() |
Plain Bearing Bar | Serrated Bearing Bar | "I" Type Bearing Bar | "I" serrated Bearing Bar |

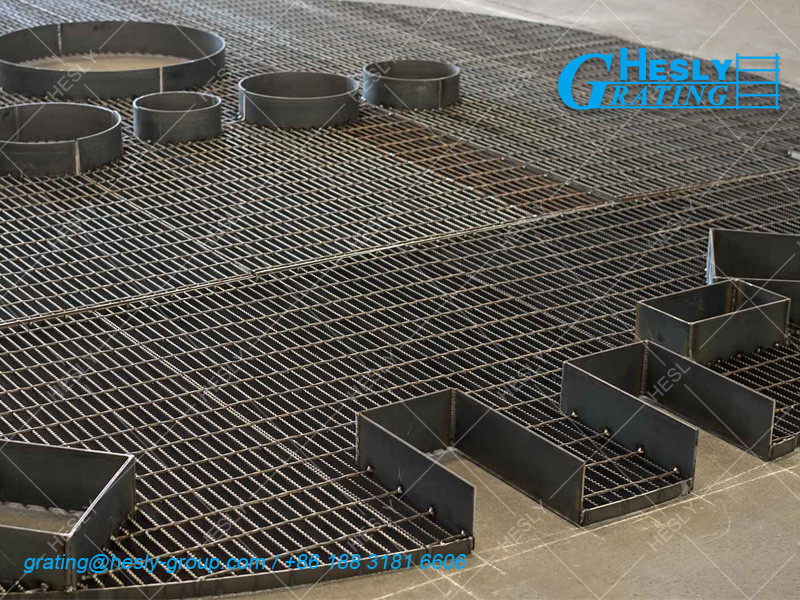

HeslyGrating have the capability to customize any of our products. We can custom-manufacture special-length grating panels. Our facility also includes a fully equipped fabrication department where we can create everything from a small trench grate to a large, complex structure featuring cutouts and toe grates. Our team can even work with your own blueprints and mechanical drawings.
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
![]() |
![]() |
![]() |
Serrated Bar Grating Factory | Welded Bar Grating Supplier | HESLY Metal Bar Grating Factory |
![]() |
![]() |
![]() |
HESLY Stainless Steel Grating | China Steel Grating Factory | Container Loading |
Contact us for a FREE prompt quotation !
![]() |
