"I" bar welded steel grating

"I" bar welded steel grating
"I" bar welded steel grating "I" bar welded steel grating "I" bar welded steel grating "I" bar welded steel grating "I" bar welded steel grating
Basic Information
Place of Origin: HESLY METAL MESH, Anping China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: HESLY-Gratings
Minimum Order Quantity: 20 ㎡
Price: Negotiated according to the order
Packaging Details: In bulk
Delivery Time: according the the order
Payment Terms: T/T, L/C
Supply Ability: 8days/20'GP
Get Best Price Contact Now
Wire Diameter: 40*5mm Material: Galvanized Steel Wire
Type: Welded Mesh Application: Protecting Mesh
Weave Style: Plain Weave Technique: Welded Mesh

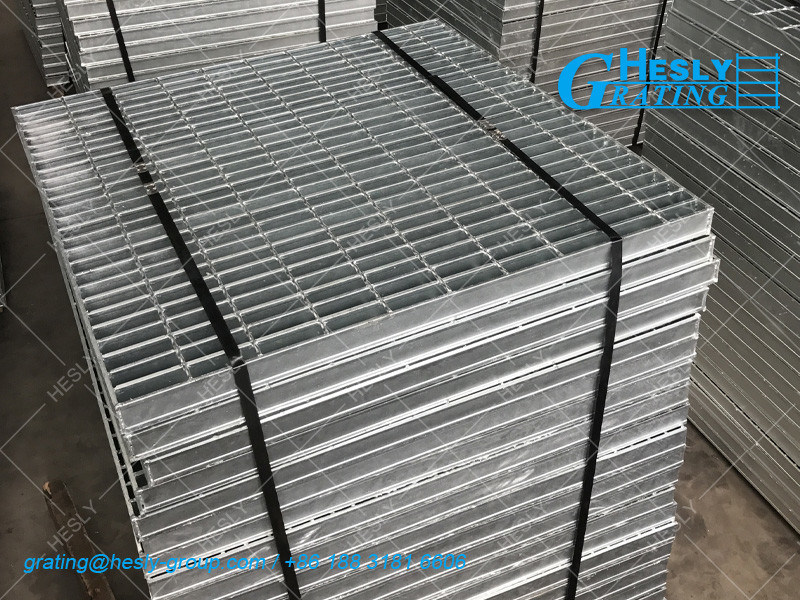

"I" bar welded steel grating

Welded Steel Bar Grating is the workhorse of the industrial flooring market and has served industry for decades.Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.

Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel, 6000 series aluminum, and 300 series stainless steels.

Type of Bearing Bars

Specify the type of grating required by reference of our four main types of products: Plain steel grating, serrated steel grating, I bar steel grating.
flat bearing bar grating serrated bar grating I bar steel grating I bar serrated metal grating
Plain Bearing Bar Serrated Bearing Bar "I" Type Bearing Bar "I" serrated Bearing Bar



Carbon Steel Finish Options

mild carbon steel bar grating China factory sales hot dipped galvanized steel bar grating powder coated steel bar grating PVDF coating welded bar grating

Bare Steel

Mill finished carbon steel bars

without additional coating. Will

show discolorationfrom welding

and fabrication. Subject to rusting.


Hot Dip Galvanized

Zinc coating applied in accordance

with ASTM A123. Provides long

lasting corrosion resistance.





Powder Coating

One coat of HeslyGratings'

standard coating. Stand colors are

green,

black, red, and blue etc.


Other Finishes: PVDF etc

Specialty coatings may be specified

in a wide range of colors.
Some options include PVDF,

painting, or epoxy paints.



Load Capacity of Heavy Duty Steel Grating

Important !
The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability.		 heavy duty steel grating factory



Common Specifications Sheet - HESLY Steel Grating

Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50   G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50


Reference Photos - HESLY Steel Bar Grating

HESLY Bar Grating heavy duty steel grating welded bar grating China Supplier
Welded Bar Grating Factory Heavy Duty Steel Grating Supplier HESLY Metal Bar Grating




Steel Clips for Steel Grating
steel grating clips Steel Bar Grating Clips Saddle Clips for bar grating
Steel Grating Clips Steel Bar Grating Clips Steel Grating Clips


Package and Delivery

Steel Grating Factory sales HESLY Galvanised Bar Grating Metal Bar Grating Exporter
Hot Dipped Galvanised Bar Grating Welded Bar Grating Exporter Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Hesly Welded Bar Grating China Factory supplier

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
  • If need C.F.R offer, just let us the Destination Sea Port.







Contact us for a FREE prompt quotation !
