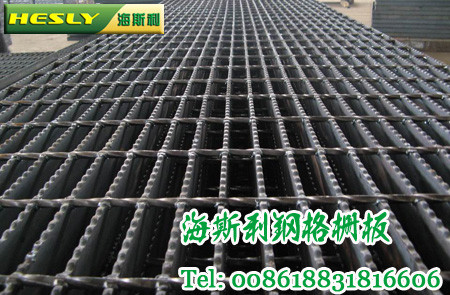

China Welded Steel Bar Grating (exporter)

Basic Information

Place of Origin:	EON-HESLY METAL MESH, Anping China
Brand Name:	HESLY/海斯利
Certification:	ISO9001：2008
Model Number:	G325/40/50

Minimum Order Quantity:	10 m2
Price:	negotiated as per the order
Packaging Details:	In bulk
Delivery Time:	According to the order
Payment Terms:	T/T, L/C
Supply Ability:	8days/20'GP

Get Best Price Contact Now

Wire Diameter:	6mm	Material:	Galvanized Steel Wire
Type:	Welded Mesh	Application:	Protecting Mesh
Weave Style:	Plain Weave	Technique:	Welded Mesh

China Welded Steel Bar Grating (exporter)

Welded Steel Bar Grating is the workhorse of the industrial flooring market and has served industry for decades.Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.

Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel, 6000 series aluminum, and 300 series stainless steels.

A).Type of Grating

Specify the type of grating required by reference of our four main types of products: Plain steel grating, serrated steel grating, I bar steel grating.


Plain Bearing Bar	Serrated Bearing Bar	"I" Type Bearing Bar	"I" serrated Bearing Bar

B).Dimensions

-Nominate the size of bearing bar and cross bar.

-Nominate the pitch of bearing bar and cross bar.

-Nominate the size of the steel grating panel.

-Nominate whether banding is required.

-For non standard panels, nominate dimension for length and width of individual panels.

-Where large areas of flooring is to be covered, provide:

i) shop drawings of grating floor zone.

ii) detail drawings of beams, pillars and their joints.

iii) setting positions of stairs and procedures of stairs, railing piping and etc.

iv) sizes and locations of cutouts, kick plates and nosing.

-For stair threads, select from our ranges of standard types and nominate dimensions and quality. Our recommended length and widths should be nominated for economical orders.

Spacing of Bearing Bars

China Welded Steel Bar Grating (exporter) 6

Bearing bar centers at 20mm:

This kind of fine mesh steel gratings have strong

load ability and also can prevent the access of

sundries of 18mm in diameter. This kind of gratings

fit for pedestrian deck, walkway and ditch covers

which require high security

Notes: common welding standard: single-side full welding every 6 bearing bars

China Welded Steel Bar Grating (exporter) 7

Bearing bar centers at 30mm:

This kind of steel grating is the most commonly used in projects with American, Australian, Japan standards are available. This kind of gratings are featured well by heavyduty, well resistance of strong impact on surface. this kind of steel grating fit for all kind of industrial platforms.

Notes: common welding standard: single- side full welding every 5 bearing bars

China Welded Steel Bar Grating (exporter) 8 Bearing bar centers at 40mm:

light grating and very economical. This kind of gratings fit for fixed platforms, walkway, and stair treads and British, German,French and Japanese standards are available. The products most commonly used for Belt corridor, storage shelf,Attic panel, trestle, guardrail, sunshade gate, etc.

Notes: common welding standard: single- side full welding every 4 bearing bars

China Welded Steel Bar Grating (exporter) 9

Bearing bar centers at 60mm:

This kind of steel gratings are especially used for mining industries. It can solve the problem that mineral splashing down and stacks on the walkway. This product usually used for mineral miningand processing and it is the best choice for workshop, meeting room and suspended ceiling of stadium in terms of it's light weight.

Notes:common welding standard: single- side full welding every 3 bearing bars

Applications of HESLY Bar Gratings

This is our project of steel grating ,it can be used to many aspects just like:
platform	trestle	trend	fence	equipment walk way
pavement	channel over	manhole cover	trash rack	mentance platform
foot bridge	scaffold	ladder	storage shelf	marine platform

Specifications of Steel Grating:

Bearing Bar Spacing	Cross Bar Spacing	*Bearing Bar Specification ( Width Thickness)**
( mm )	( mm )	*325 ( mm )**	*405 ( mm )**	*455 ( mm )**	*505 ( mm )**	*555 ( mm )**	*605 ( mm )**
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G4555/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

material

China Welded Steel Bar Grating (exporter) 14

China Welded Steel Bar Grating (exporter) 15

China Welded Steel Bar Grating (exporter) 16
