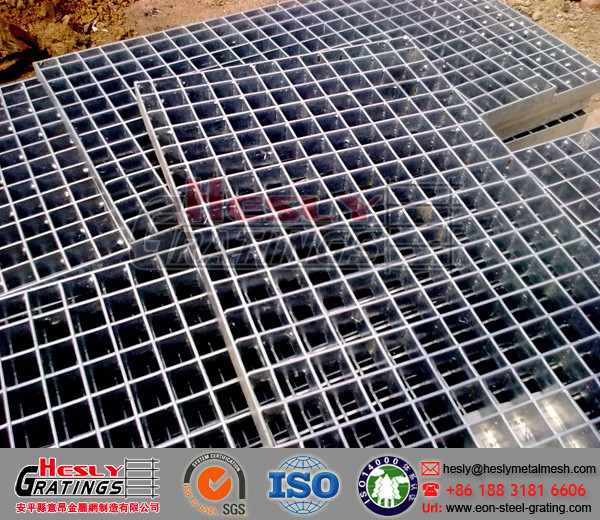

Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China

Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China
Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China
Basic Information
Place of Origin: HeslyGrating, CHINA
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: G325/30/100
Minimum Order Quantity: 50 ㎡
Price: US$15.00-US$80.00
Packaging Details: Steel Pallet
Delivery Time: 15days/20'GP
Payment Terms: T/T, L/C
Supply Ability: 500㎡/day
Get Best Price Contact Now
Steel Grade: Carbon Steel Q195, Q235 Load Bar: 30X5mm
Load Bar Pitch: 30mm Cross Bar: 8X8mm Twisted Bar
Finish: Hot Dipped Galvanized

Welded Steel Bar Grating for water tank | Hot Dipped Galvanized 55micro meters | 30X5mm load bar | HeslyGrating China

Steel Grating is made by stainless or mild steel of certain sizes through the processing of grooving, lock-pressure, welding, finishing and other treatment. Industrial bar gratings can be actually made from copper, aluminum and other materials, while galvanized steel grating is the mostly used one due to its economic cost and good property.

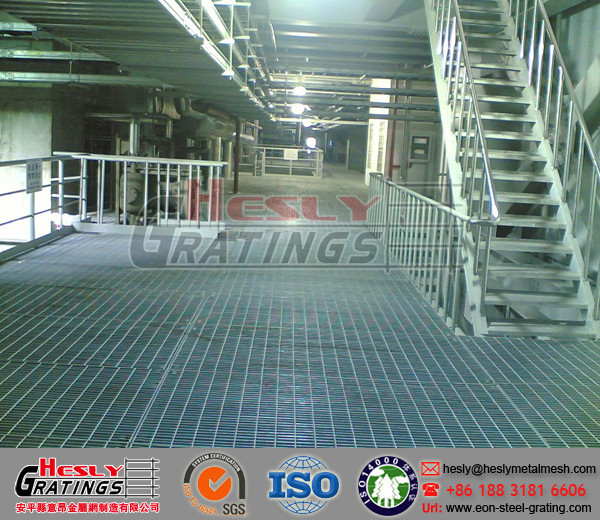

Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.

Type of Bearing Bars

Specify the type of grating required by reference of our four main types of products: Plain steel grating, serrated steel grating, I bar steel grating.
flat bearing bar grating serrated bar grating I bar steel grating I bar serrated metal grating
Plain Bearing Bar Serrated Bearing Bar "I" Type Bearing Bar "I" serrated Bearing Bar



Carbon Steel Finish Options

mild carbon steel bar grating China factory sales hot dipped galvanized steel bar grating powder coated steel bar grating PVDF coating welded bar grating

Bare Steel

Mill finished carbon steel bars

without additional coating. Will

show discolorationfrom welding

and fabrication. Subject to rusting.

Hot Dip Galvanized

Zinc coating applied in accordance

with ASTM A123. Provides long

lasting corrosion resistance.



Powder Coating

One coat of HeslyGratings'

standard coating. Stand colors are

green, black, red, and blue etc.


Other Finishes: PVDF etc

Specialty coatings may be specified

in a wide range of colors.
Some options include PVDF,

painting, or epoxy paints.


Load Capacity of Heavy Duty Steel Grating

Important !
The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability.		 heavy duty steel grating factory



Applications of Steel Gratings

This is our project of steel grating ,it can be used to many aspects just like:
platform trestle trend fence equipment walk way
pavement channel over manhole cover trash rack mentance platform
foot bridge scaffold ladder storage shelf marine platform

Common Specifications Sheet - HESLY Steel Grating

Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50   G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Series Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load width×thickness
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50


Reference Photos - HESLY Steel Bar Grating

steel bar grating China welded bar grating China Exporter forge welded bar grating China Supplier
Forge Steel Bar Grating Pressure Locked Bar Grating Welded Bar Grating China




Steel Clips for Steel Grating
steel grating clips Steel Bar Grating Clips Saddle Clips for bar grating
Steel Grating Clips Steel Bar Grating Clips Steel Grating Clips


Package and Delivery

Steel Grating Factory sales HESLY Galvanised Bar Grating Metal Bar Grating Exporter
Hot Dipped Galvanised Bar Grating Welded Bar Grating Exporter Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Hesly Welded Bar Grating China Factory supplier

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
  • If need C.F.R offer, just let us the Destination Sea Port.





Contact us for a FREE prompt quotation !
