Place of Origin: | HeslyGrating-China |
---|---|
Brand Name: | HESLY |
Certification: | ISO9001:2008 |
Model Number: | HSG305/30/100A |
Minimum Order Quantity: | 100 square meters |
Price: | Negotiated according to the order |
Packaging Details: | In bulk |
Delivery Time: | according the the order |
Payment Terms: | T/T, L/C |
Supply Ability: | 500㎡/day |
Material: | AL Strip | Type: | Welded Mesh |
---|---|---|---|
Weave Style: | Plain Weave | Technique: | Welded Mesh |
Application: | Walkway, Stair Steps |

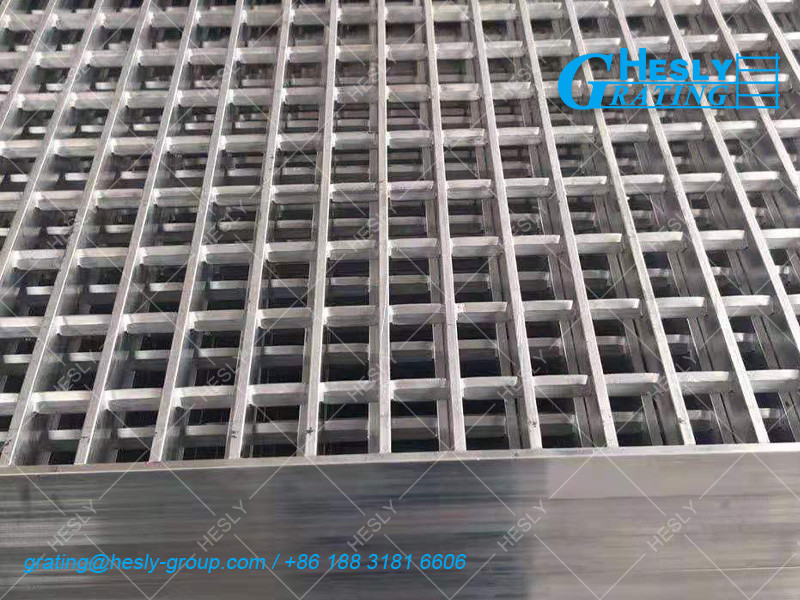

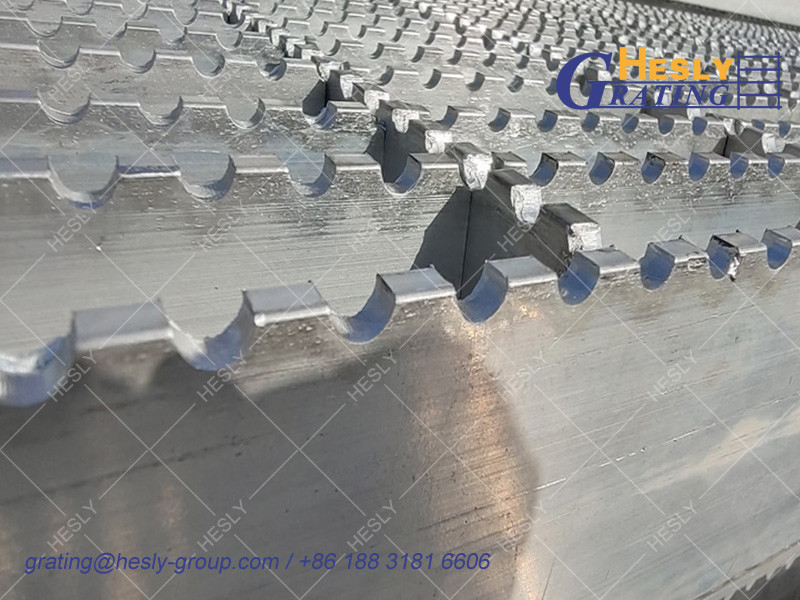

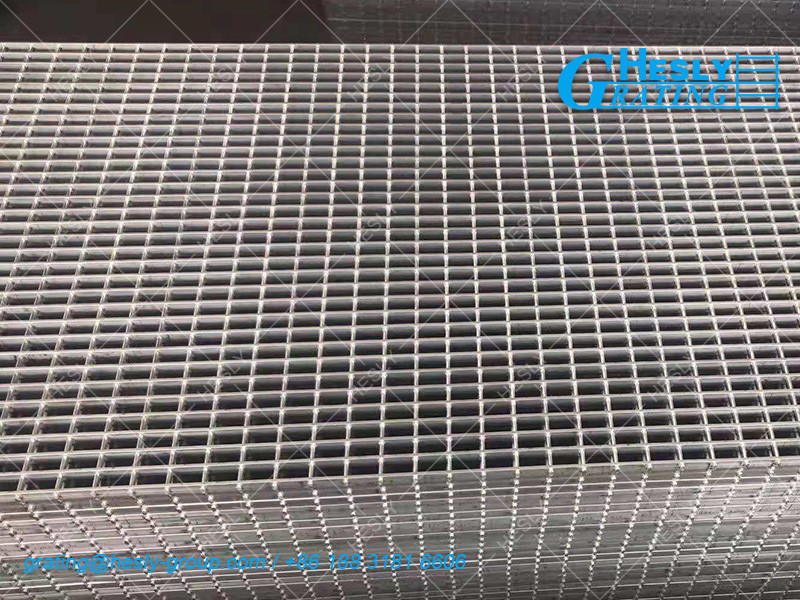

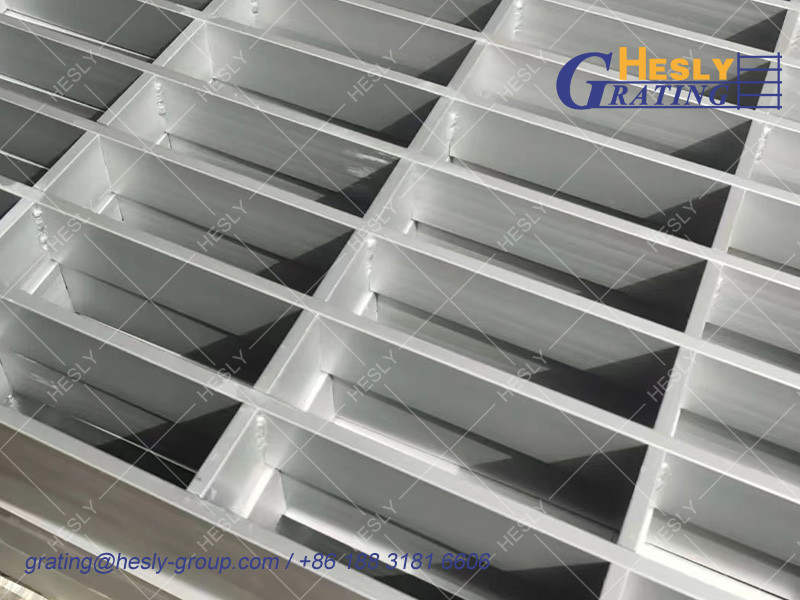

Aluminum Bar Grating is lightweight, corrosion resistant, non-sparking and has an unmatched strength-to-weight ratio. Manufactured from ASTM B221, 6063 or 6061 alloy, aluminum grating is available in four distinct products, type “ADT” Dovetail Pressure Locked , type “SG” Swaged Rectangular Bar, type “SGI” Swaged “I” Bar, and type “SGF” Swaged Flush-Top and. All four products are available with bearing bar spacing ranging from 19/16″ (1-3/16″) to 7/16″ on center and with cross bars at either 4″ or 2″ on center. Rectangular bar products are manufactured with standard plain or optional serrated walking surfaces and “I” bar products are manufactured with a standard skid-resistant striated walking surface. Aluminum products are typically shipped “mill finish” with no additional treatment. For architectural applications or highly corrosive environments, supplemental anodizing, chemical cleaning or powder coat finishes are available.
Aluminum products are available in standard mill finish. Optional anodizing, chemical cleaning, or powder coated finishes are available for highly corrosive or architectural applications.
Because of its light weight, corrosion resistance, and non-sparking, Aluminum gratings are widely used in indoor ceilings, outdoor curtain walls and other decorative applications due to its lightweight, excellent corrosion resistance and non-sparking properties. It is suitable for industrial applications where the strength-to-weight ratio is important, such as wastewater treatment plants. It is mainly used for safety protection and served as walkways, floors, platforms, stair treads, fences, etc.
