Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China

Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China
Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China
Basic Information
Place of Origin: HeslyGrating-China
Brand Name: HESLY
Certification: ISO9001
Model Number: HSP-12300
Minimum Order Quantity: 100 pcs
Price: US$5.0-US$20.00
Packaging Details: Pallet or In bulk
Delivery Time: 15days/40'GP
Payment Terms: T/T, L/C
Supply Ability: 2000PCS/day
Get Best Price Contact Now
HS Code: 73089000 Material: Galvanized Steel Plate
Width: 300mm Etc Length: 3000mm

Scaffolding Metal Board Plank | 600mm*240mm*45mm | 1.8mm thickness | Galvanized | HeslyGrating Factory, China

Manufactured from pre-galvanised steel, hesly scaffolding boards offer far greater durability benefits as opposed to traditional timber boards and fully confirm to BS EN 12811.

Steel scaffold plank is used as walkway plank in scaffolding system for construction safety. It is a fitting part of construction scaffolds. The use of steel scaffold plank avoids the disadvantage of heavy water absorption and extreme slippery caused by rain on wooden scaffold planks. It is light weight and high strength, easy to install and highly reusable. Walcoom steel scaffold planks use Q235 steel as raw material, and the service life of steel scaffold plank can reach 5–8 years.


scaffolding steel plankFeatures of HESLY Steel Planks

  • High bearing capacity and low weight, anti-corrosion.
  • Anti-deposited sand, fireproof.
  • Slip resistant surface.
  • Foolproof, weather resistance.
  • Safe and neat construction.
  • Environmental protection.
  • Easy to assemble & dismantle, reusable, cost saving.



Common size most used in different market

Width*Height Thickness Length Main market
210*45MM 1.0-2.0MM 1-4M





South east Asia
240*45MM 1.0-2.0MM 1-4M
250*50MM 1.0-2.0MM 1-4M
250*40MM 1.0-2.0MM 1-4M
225*38MM 1.0-2.0MM 1-4M The Middle East
230*65MM 1.5-1.8MM 1-4M Australia
300*50MM 1.5-1.8MM 1-4M The Europe
We also can produce different size of plank according to your requirement.



Steel plank
Size/mm Length/mm Width/mm Height/mm Kg/pc
210*45*1.2 4000 210 45 13.6
210*45*1.2 3000 210 45 10.26
210*45*1.2 2000 210 45 6.93
210*45*1.2 1000 210 45 3.59
240*45*1.2 4000 240 45 14.87
240*45*1.2 3000 240 45 11.23
240*45*1.2 2000 240 45 7.59
240*45*1.2 1000 240 45 3.94
250*50*1.2 4000 250 50 15.67
250*50*1.2 3000 250 50 11.84
250*50*1.2 2000 250 50 8
250*50*1.2 1000 250 50 4.15




Steel plank with hoot/cat walk
Size/mm Length/mm width/mm height/mm kg/pc
500*50*1.2 1829 500 50 15.5
500*50*1.2 1219 500 50 12.5
480*45*1.2 1829 480 45 13.5
480*45*1.2 1219 480 45 11
450*45*1.2 1829 450 45 13
450*45*1.2 1219 450 45 10
450*45*1.2 1219 450 38 12.5
420*45*1.2 1829 420 45 12.5
420*45*1.2 1219 420 45 9
330*50*1.2 1829 330 50 11.5
330*50*1.2 1219 330 50 8.5
450*38*1.2 1829 450 38 12.5

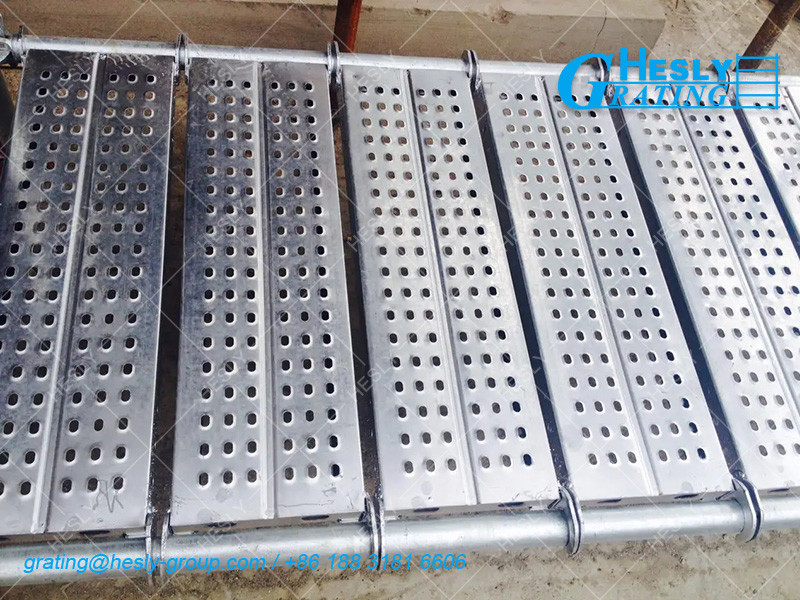

Reference Photos - Scoffolding Steel Planks

scoffolding steel planks scaffolding board plank China

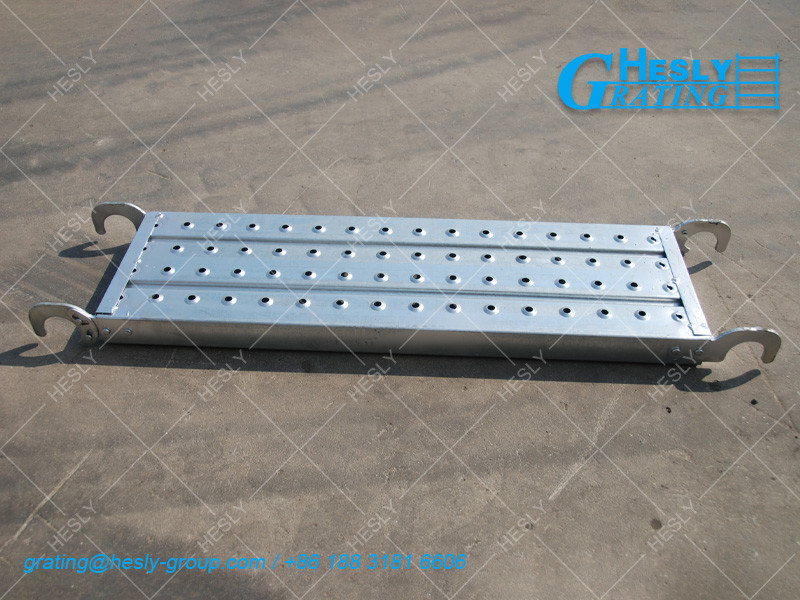

Scaffolding Steel Plank Scaffolding Steel Plank with hook

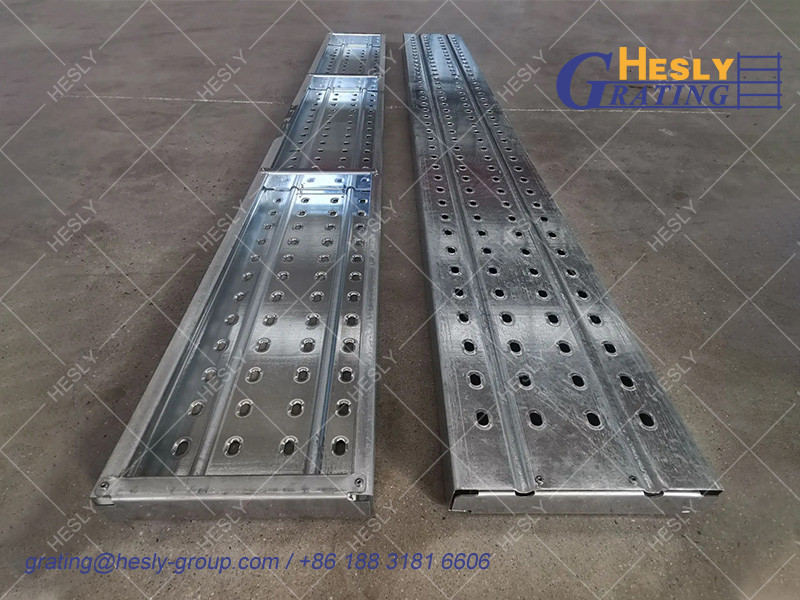

steel plank 2.4m length China Factory worksafe scaffolding plank 300X3000mm
Worksafe Scaffolding Steel Plank Worksafe Scaffolding Plank
steel scaffolding plank factory china steel scaffolding plank China exporter
China Scaffolding Plank China Scaffolding Plank

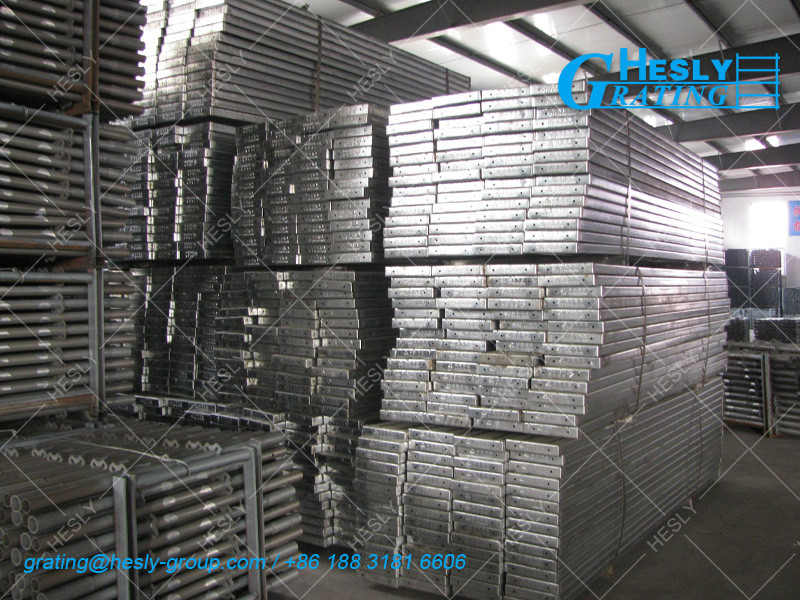

Package and Delivery



metal plank factory China metal plank China Exporter
Metal Plank Factory China Metal Plank Factory China
