Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China

Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China
Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China Galvanized Grip Strut Safety Grating, 12gauge thickness, 3 Galvanized Grip Strut Safety Grating, 12gauge thickness, 3
Basic Information
Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: HG-EYZ
Minimum Order Quantity: 50 PCS
Price: Negotiated according to the order
Packaging Details: pallet
Delivery Time: according the the order
Payment Terms: T/T, L/C at sight
Supply Ability: 10days/20'GP
Get Best Price Contact Now
Material: Carbon Steel / Stainless Steel / Aluminum Thickness: 2mm To 5mm
Technical: Perforated Metal Coating: Hot-dipped Galvanised / Powder Coated
Application: Stairs / Antiskid Platform

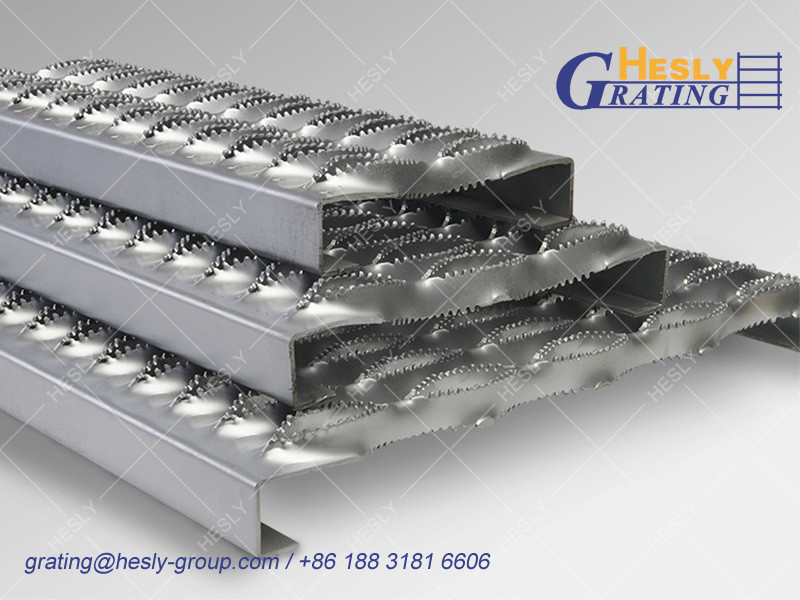

Galvanized Grip Strut Safety Grating, 12gauge thickness, 3" deep channel, 3000mm plank-HeslyGrating, China

HeslyGrating Industrials is the manufacturer of the original GRIP STRUT Safety Grating in China. Grip Strut walkways gratings are ideal for process plants,refineries,grain elevators,conveyor walkways,underbridge inspection walkways,papermills,etc.
HeslyGrating's full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications. Attributes that make safety grating a preferred choice include:
  • Slip-Resistant
  • Economical
  • Lightweight
  • Versatile
  • Low Maintenance
  • High Strength-to-Weight

Materials & Specifications

Material Thickness Finished Height Finished Width Length
Carbon Steel 2.0 - 3.0mm 40-75mm 120 - 480mm ≤ 4m
Aluminium 2.0 - 3.0mm 40-75mm 300 - 480mm ≤ 4m
Gal. Steel 2.0 - 3.0mm 40-75mm 300 - 480mm ≤ 4m
Stainless Steel 2.0 - 3.0mm 40-75mm 300 - 480mm ≤ 4m
​

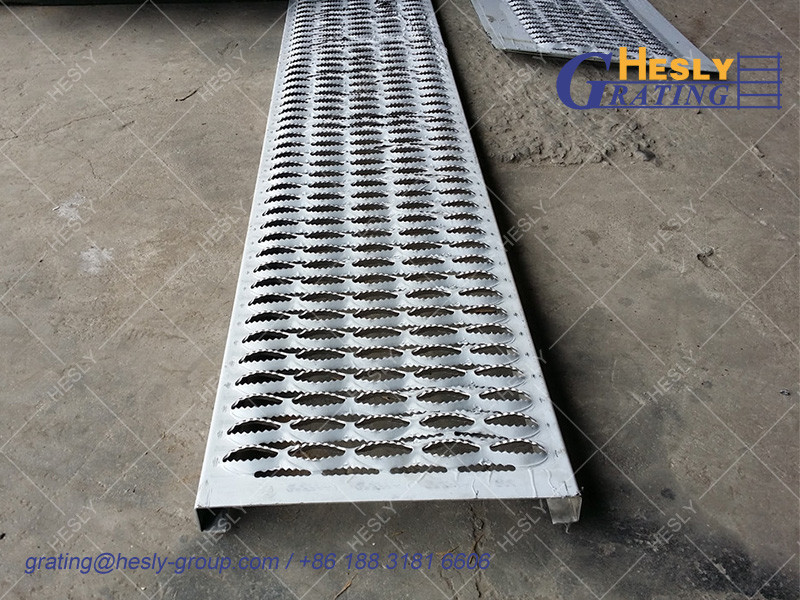

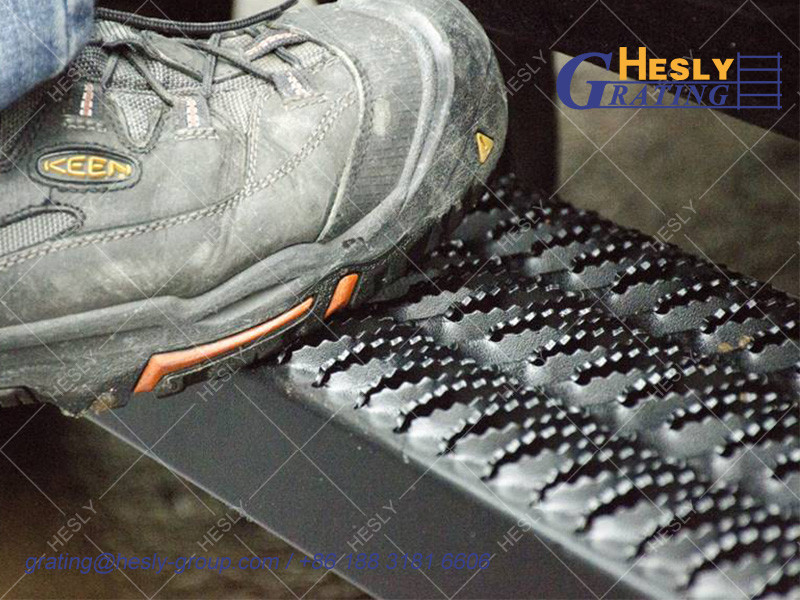

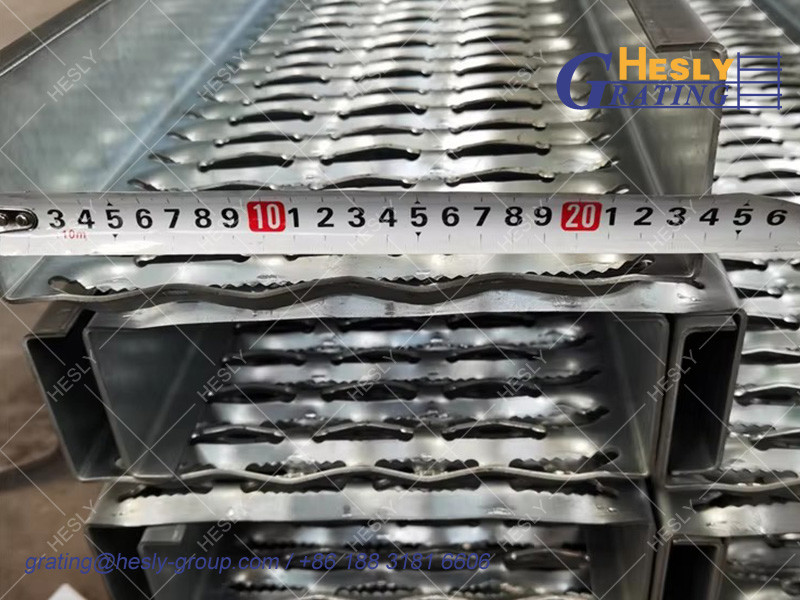

Reference Photos

Grip Strut Safety Grating China factory sales Grip Strut Safety Grating China factory exporter Grip Strut Safety Grating China factory exporter
Grip Strut Safety Grating China factory Grip Safety Grating Plank China factory Plank Safety Grating Hesly
Grip Strut Safety Grating Strut Grip Safety Grating Plank China Factory sales plank safety grating factory
Shark Mouth Safety Grating Plank Safety Grating Tread Strut Grip Safety Grating Channel



Pacakge and Delivery


anti skidding safety grating perforated safety grating China HESLY Perforated plank safety grating
Perforated Safety Grating Plank Safety Grating Factory Strut Grip Safety Grating
