12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel

12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel
12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3
Basic Information
Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001：2008
Model Number: HSG230300
Minimum Order Quantity: 50 PCS
Price: Negotiated according to the order
Packaging Details: pallet
Delivery Time: according the the order
Payment Terms: T/T, L/C at sight
Supply Ability: 10days/20'GP
Get Best Price Contact Now
Material: Carbon Steel / Stainless Steel / Aluminum Thickness: 2mm To 5mm
Technical: Perforated Metal Coating: Hot-dipped Galvanised / Powder Coated
Application: Stairs / Antiskid Platform

12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel

12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 0Grip Strut Safety Grating plank is an excellent slip resistant material that is low in material cost, as well as installation cost. This planking, at 3" deep x .100 thick and 11-3/4" wide (5 diamond), provides maintenance-free open design for drainage of fluids, chips, grease, mud and snow. The serrated surface grips soles securely-in all directions-in practically every place. High strength-to-weight performance is achieved through depth of section and structural design. Light and easy to handle, this helps in quick installation, that usually can be handled by one person. Available in 5052 Aluminum. Both the length and width are available in custom-made.



Safety First

Safety grating is recommended for companies who are concerned with their work safety. Perforated safety grating is a metal grating type that is used to improve the surface traction. To improve the traction, the perforated stair treads has small diamond shape-like protrusion in its surface finish. The protrusion increases the grip that prevents any slip and fall accident from happening.

Safety grating also has plenty of open surfaces. This allows free air flowing and proper drainage, preventing water or any liquid from building up that can lead to safety hazards or slips.



Common specifications:

  • Channel height available: 2”,2 1/2”,3”,4”,5”(walkway)
  • Steel gauge: 9GA,10GA,11GA
  • Channel width: 9 1/4”,13 3/4”,27 4/7”,30”,36”
  • Standard Length: 10’,12’
  • Material: Aluminum,Stainless Steel,Galvanized Steel,Black HRPO,etc
  • Popular type:2-Diamond,3-Diamond,5-Diamond,6-Diamond,8-Diamond,etc
Material Thickness Channel width-diamond No. Bending height Folding Length





carbon steel



galvanized



stainless steel



aluminum





2.0mm



2.5mm



3.0mm



3.5mm



 4 3/4" - 2 Diamond Holes





30mm

35mm
40mm
45mm
50mm
55mm
.....
100mm





15mm



20mm



25mm







max 12'
7" - 3 diamond holes
9 1/2" - 4 diamond holes
11 3/4" - 5 diamond holes
14 1/2" - 6 diamond holes
17" - 7 diamond holes
18 3/4" - 8 diamond holes
21 1/2" - 9 diamond holes
24" - 10 diamond holes



Material of Perforated Grip Strut Safety Grating

  • Carbon Steel
  • Aluminium alloy
  • AISI304 Stainless Steel
  • AISI316 stainless steel

Features and Assets :
  • Slip-Resistant
  • Safe in all directions
  • High load capacity
  • Versatile
  • Economical
  • Pattern: in regular, heavy duty, walkway and stair treads
  • Allows for fluid or mud drainage
  • Low Maintenance
  • Lightweight
  • High Strength-to-Weight
  • Easy to handle and install

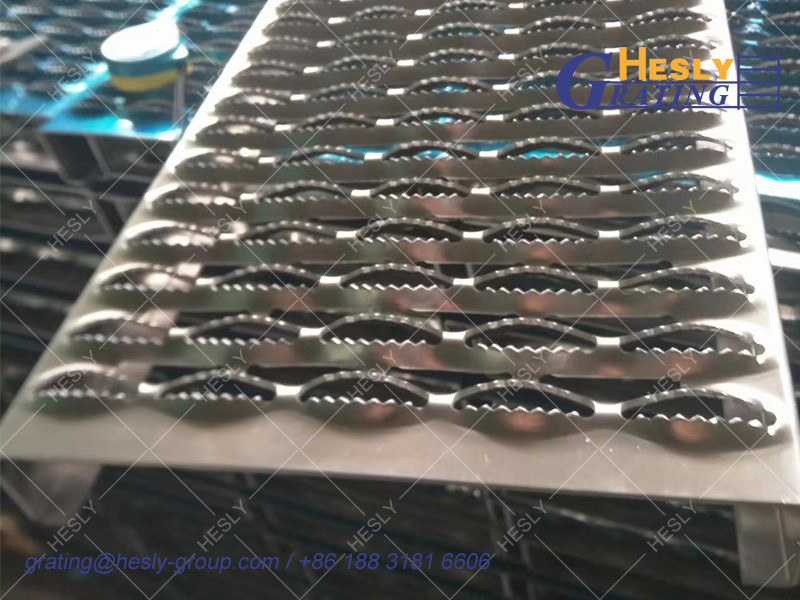

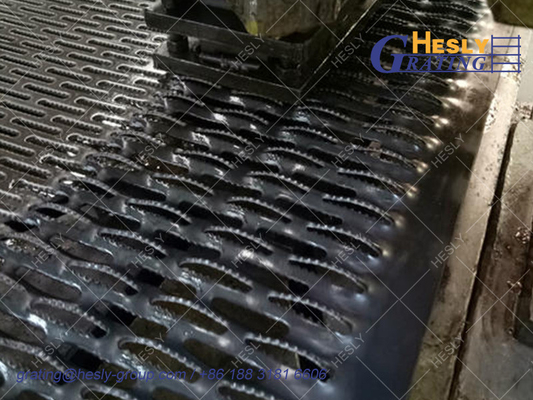

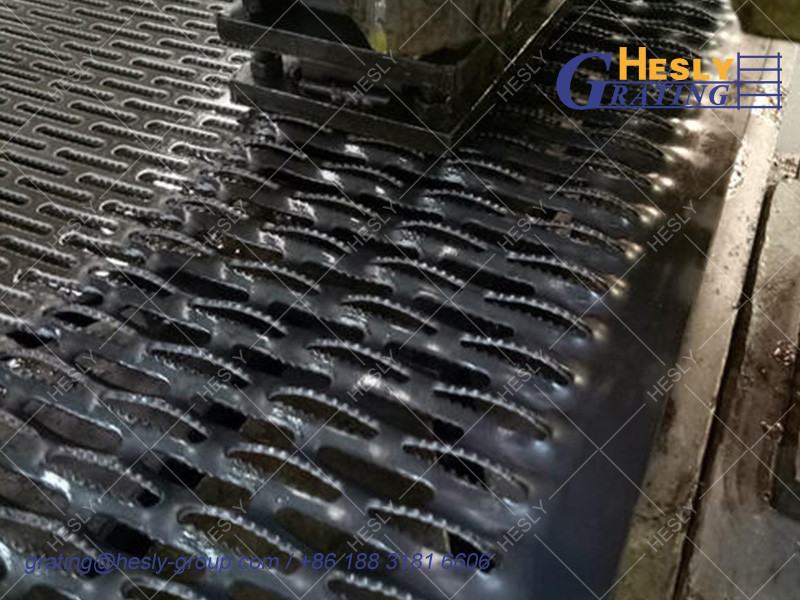

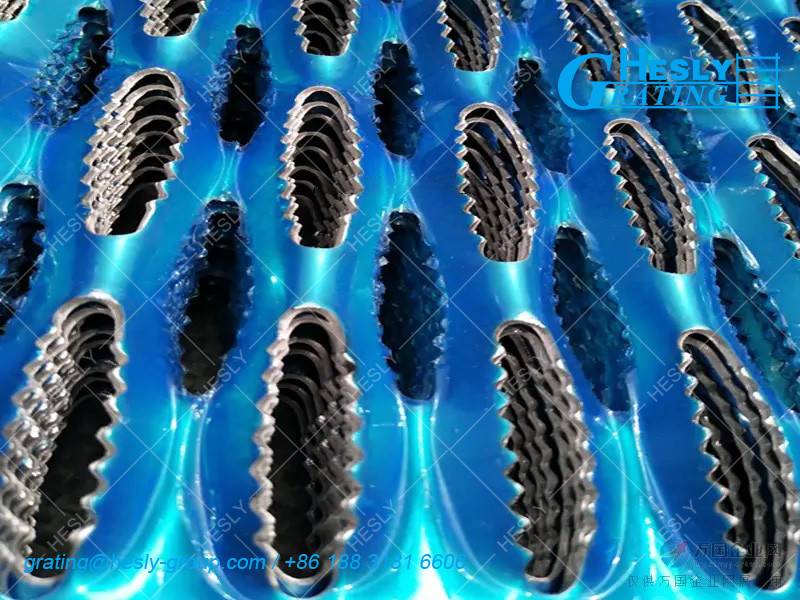

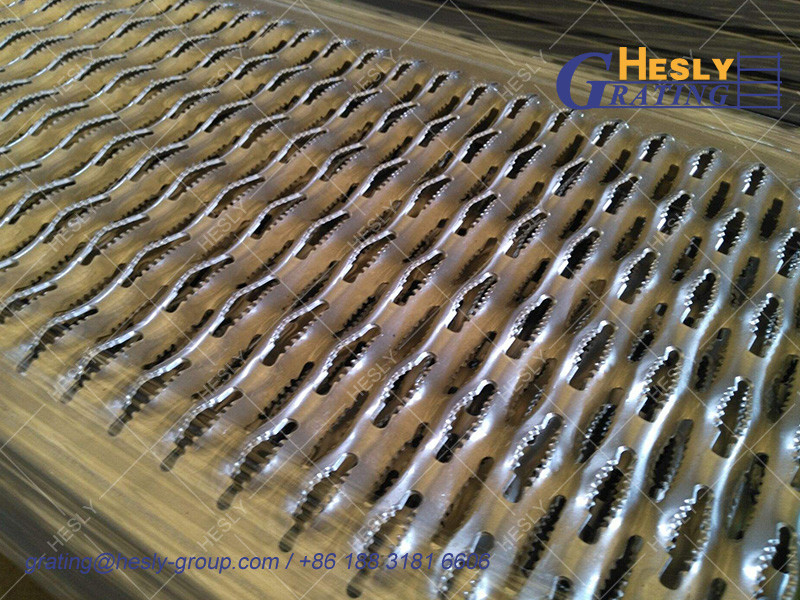

Reference Photos

12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 1 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 2 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 3
Grip Strut Safety Grating China factory Grip Safety Grating Plank China factory Plank Safety Grating Hesly
12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 4 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 5 12gauge Grip Strut Safety Grating Walkway, Serrated surface that provides maximum slip protection, 3" deep channel 6
Shark Mouth Safety Grating Plank Safety Grating Tread Strut Grip Safety Grating Channel
