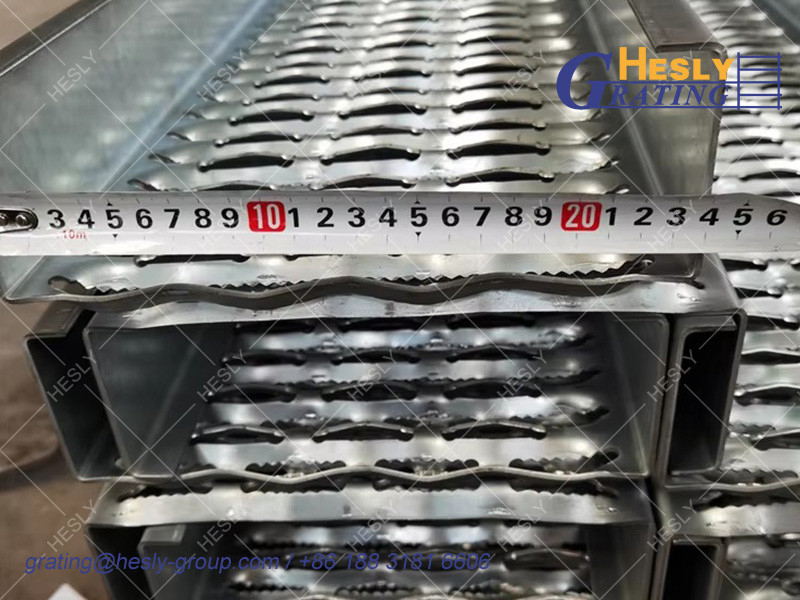

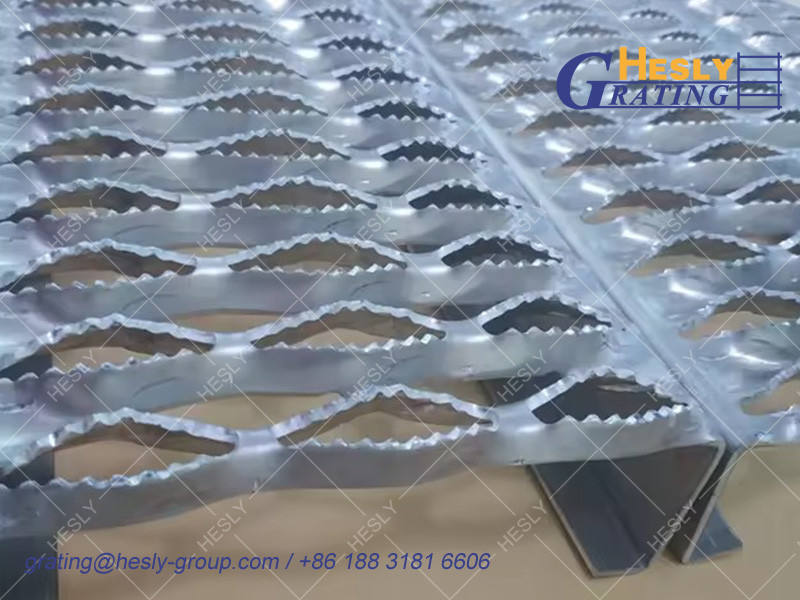

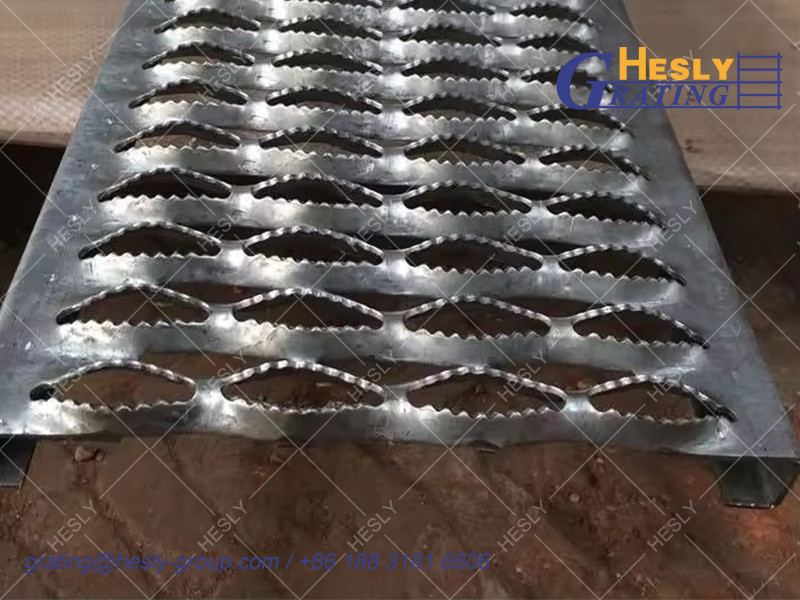

Diamond-Strut safety grating is one-piece cold-formed and diamond-shaped construction. The diamond opening with serrated surface provides slip-resistance in all directions and grips shoes tightly preventing slips, slides and falls. Open diamond construction design permits the fast drainage of fluids, grease, mud, chips and debris, and catches falling tools and other dangerous items. Apart from serrated surface, there is another surface - non-serrated. The non-serrated surface is adaptable for applications where a high-degree of slip resistance is required with a smooth surface.



Safety First

Safety grating is recommended for companies who are concerned with their work safety. Perforated safety grating is a metal grating type that is used to improve the surface traction. To improve the traction, the perforated stair treads has small diamond shape-like protrusion in its surface finish. The protrusion increases the grip that prevents any slip and fall accident from happening.

Safety grating also has plenty of open surfaces. This allows free air flowing and proper drainage, preventing water or any liquid from building up that can lead to safety hazards or slips.



Common specifications:

• Channel height available: 2”,2 1/2”,3”,4”,5”(walkway)
• Steel gauge: 9GA,10GA,11GA
• Channel width: 9 1/4”,13 3/4”,27 4/7”,30”,36”
• Standard Length: 10’,12’
• Material: Aluminum,Stainless Steel,Galvanized Steel,Black HRPO,etc
• Popular type:2-Diamond,3-Diamond,5-Diamond,6-Diamond,8-Diamond,etc

Material	Thickness	Finished Height	Finished Width	Length
Carbon Steel	2.0 - 3.0mm	40-75mm	120 - 480mm	≤ 4m
Aluminium	2.0 - 3.0mm	40-75mm	300 - 480mm	≤ 4m
Gal. Steel	2.0 - 3.0mm	40-75mm	300 - 480mm	≤ 4m
Stainless Steel	2.0 - 3.0mm	40-75mm	300 - 480mm	≤ 4m





Slip-Resistant Safe in all directions High load capacity Versatile Economical Pattern: in regular, heavy duty, walkway and stair treads

Allows for fluid or mud drainage Low Maintenance Lightweight High Strength-to-Weight Easy to handle and install
