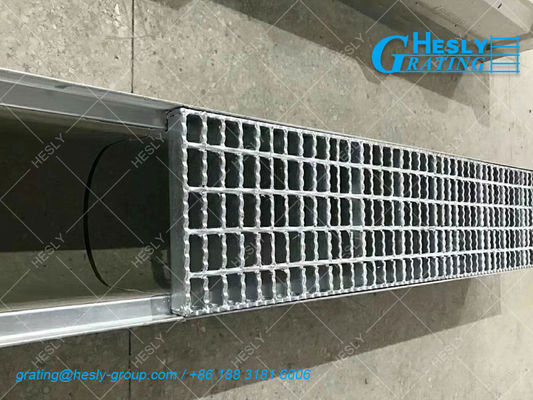

Trench Grating Cover | 30X5mm beating bar trech drainage system | 55micron meter zinc coating | Hesly China Grating

Name: Trench Grating Cover | 30X5mm beating bar trech drainage system | 55micron meter zinc coating | Hesly China Grating
Brand: HESLY
SKU: G405/40/100
Rating: 4.6 (111 reviews)

Basic Information

Place of Origin:	HeslyGrating-China
Brand Name:	HESLY
Certification:	ISO9001：2008
Model Number:	G405/40/100

Minimum Order Quantity:	100m
Price:	Negotiated according to the order
Packaging Details:	Steel Pallet
Delivery Time:	according the the order
Payment Terms:	T/T, L/C
Supply Ability:	1000㎡/day

Get Best Price Contact Now

Material:	Carbon Steel / Stainless Steel / AL Alloy	Load Bar:	50X5mm Etc
Load Bar Pitch:	30mm	Width:	500mm
Finish:	Hot Dipped Galvanized Coating

Trench Grating Cover | 30X5mm beating bar trech drainage system | 55micron meter zinc coating | Hesly China Grating

The drainage trench grating is mainly used in the municipal engineering, factory, garage and residences to drain water and keep ground dry. Close mesh drainage trench grate is ideal for pedestrian wearing high-heel shoes passing through. Swage-locked drainage trench grate can supply lateral stiffness for the grating.

Carbon Steel Finish Options

Bare Steel

Mill finished carbon steel bars

without additional coating. Will

show discolorationfrom welding

and fabrication. Subject to rusting.

Hot Dip Galvanized

Zinc coating applied in accordance

with ASTM A123. Provides long

lasting corrosion resistance.

Powder Coating

One coat of HeslyGratings'

standard coating. Stand colors are

green,

black, red, and blue etc.

Other Finishes: PVDF etc

Specialty coatings may be specified

in a wide range of colors.
Some options include PVDF,

painting, or epoxy paints.

Load Capacity of Heavy Duty Steel Grating

Important !
The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability.

Common Specifications Sheet - HESLY Steel Grating

Description	Frame Length	Frame Width	Frame Depth	Grate Length	Grate Width	Grate Depth	Clear Opening Width	Clear Opening Length
150mm Clear Opening Trench Grate & Frame Class B	2000	225	40	2×1000	235	30	170	2000
150mm Clear Opening Trench Grate & Frame Class D	2000	225	55	2×1000	235	50	140	2000
225mm Clear Opening Trench Grate & Frame Class D	2000	337	55	2×1000	320	50	225	2000
300mm Clear Opening Trench Grate & Frame Class D	2000	400	70	2×1000	380	70	300	2000

Reference Photos - HESLY Steel Bar Grating


Welded Bar Grating China Factory	Steel Bar Grating Trench Cover	Hot Dipped Galvanized Grating

Bar Grating Drain Trench	Steel Grating Drainage Cover	mild steel Trench Drain Grate

**Steel Clips for Steel Grating**

Steel Grating Clips	Steel Bar Grating Clips	Steel Grating Clips

Package and Delivery


Hot Dipped Galvanised Bar Grating	Welded Bar Grating Exporter	Container Loading

How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.

Required Information for a formal quotation

Material: Mild Carbon, 304/316 stainless steel, Aluminium
Dimension: Width X Span (length of the bearing bar)
Bearing Type: Flat or Serrated
Bearing Bar (Depth X Thickness)
Spacing of the bearing bars
Cross Bar Diameter & style (squre twisted or round bar)
Cross Bar Pitch
With End bands or Not
Finish: galvanized, powder or PVDF
QUANTITY (very important for the cost)
If need C.F.R offer, just let us the Destination Sea Port.

Contact us for a FREE prompt quotation !

	HeslyGrating Industries - China
	Tel: +86-318-7888890
	Mobile: +86-188 3181 6606
	Fax: +86-318-796 3989
	E-mail: grating@hesly-group.com
	www.heslygrating.com
