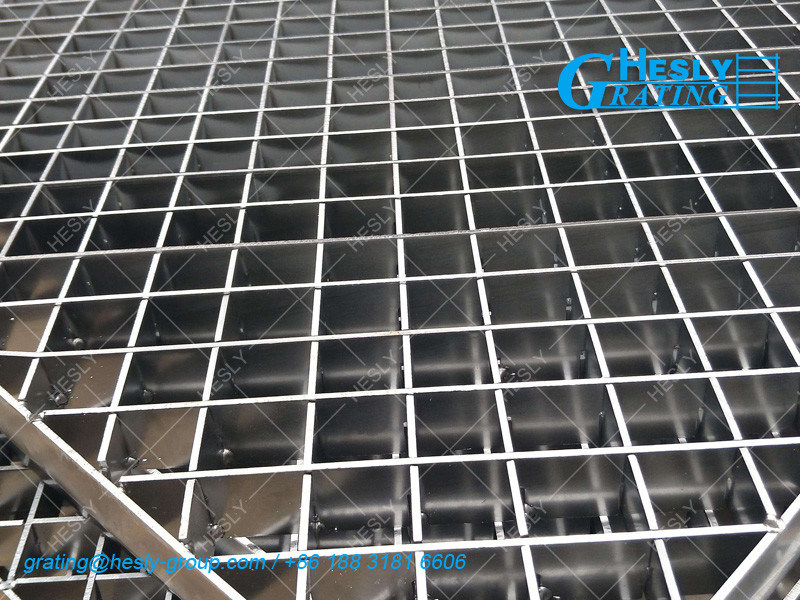

Pressure Lock Grating | 60X5mm load bar | 304 Stainless Steel | Hesly Brand | China direct sales

Name: Pressure Lock Grating | 60X5mm load bar | 304 Stainless Steel | Hesly Brand | China direct sales
Brand: HESLY
SKU: G505/30/100P
Rating: 4.9 (129 reviews)

Basic Information

Place of Origin:	HeslyGrating-China
Brand Name:	HESLY
Certification:	ISO9001：2008
Model Number:	G505/30/100P

Minimum Order Quantity:	50 ㎡
Price:	Negotiated as per RFQ
Packaging Details:	bundle
Delivery Time:	15days/20'GP
Payment Terms:	T/T, L/C
Supply Ability:	1000SQM/day

Get Best Price Contact Now

Material:	Carbon Steel / Stainless Steel	Type:	Press Locked
Finish:	Hot Dipped Galvanized

Pressure Lock Grating | 60X5mm load bar | 304 Stainless Steel | Hesly Brand | China direct sales

Pressure Locked Grating is often desired because of its neat appearance, smooth clean lines, durability, and its excellent lateral support. Permanent locking is achieved by hydraulically pressing two closely-toleranced slotted bars together. These gratings offer more flexibility in design than any other grating type.

HeslyGratings offers two distinct types of Pressure Locked Gratings which are identified by their method of assembly. Manufactured without the introduction of heat or riveting, these gratings provide a finished product with attractive architectural lines. This pleasing appearance makes Pressure Locked Gratings ideal candidates for architectural and ornamental applications such as grilles, screens and fences. Additionally, pressure locked methods of manufacturing allow for the production of close mesh gratings with minimal open area. Pressure Locked Gratings with bearing bars spaced at 11/16" and 7/16" on center conform with the rigid spacing requirements of the Americans with Disabilities Act (ADA). These products are commonly installed at the entrance to public buildings where concerns of pedestrian traffic and high heeled shoes coincide with needs for ventilation and drainage.

HESLY Pressure Locked Gratings are available in aluminum, carbon steel, galvanized steel, and stainless steel.

Model of HESLY Pressure Locked Grating

HESLY Pressure locked bar grating
Type A: It is the standard pressure locked grating and it is the most popular in market. Both the load bars and cross bars have the same specifications. For this type of grating, the load-bearing capacity is the same for the horizontal and vertical directions.

Type B: The depth of the cross bars are usually smaller than the bearing bars. Generally, it is half of the bearing bar, even 1/3 of the bearing bar.

Type C: The cross bars are not vertical against the load bar, there is an angle between of them. It is popular in sunshade grate.

Using your grating correctly

HeslyGrating China manufacturer

Using your grating correctly

In order to guarantee the load-bearing capacity of the bar grating, it must be placed in a way that the width / load bearing bars bridges the span width, ie the distance between the two supporting points.

Make sure that the surface of the grating resting on the support points is at least at the height / thickness of the grating.

Common Specifications - Welded Bar Grating

Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
Series	Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load width×thickness
Series	Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Reference Photos - HESLY Press Locked Bar Grating


Pressure Steel Bar Grating Factory	Pressure Locked Grating Supplier	Press Locked Serrated Bar Grating

**Steel Clips for Steel Grating**

Steel Grating Clips Type A	Steel Grating Clips Type B	Saddle Clips

Package and Delivery


Hot Dipped Galvanised Bar Grating	Welded Bar Grating Exporter	Container Loading

Contact us for a FREE prompt quotation !

	HeslyGrating Industries - China
	Tel: +86-318-7888890
	Mobile: +86-188 3181 6606
	Fax: +86-318-796 3989
	E-mail: grating@hesly-group.com
	www.heslygrating.com

Contact Details
