Place of Origin: | HeslyGrating-China |
---|---|
Brand Name: | HESLY |
Certification: | ISO9001:2008 |
Model Number: | G20010/50/50 |
Minimum Order Quantity: | 10 SQM |
Price: | USD30.00-USD200.00 |
Packaging Details: | In bulk |
Delivery Time: | 12days/20'GP |
Payment Terms: | T/T, L/C at sight, D/P at sight |
Supply Ability: | 800SQM/day |
Material: | Carbon Steel / Stainless Steel | Style: | Pressure Locked |
---|---|---|---|
Load Bar Spacing: | 20mm To 100mm | Cross Bar Spacing: | 20mm To 100mm |
Coating: | Hot Dipped Galvanised / Powder Coated Etc |

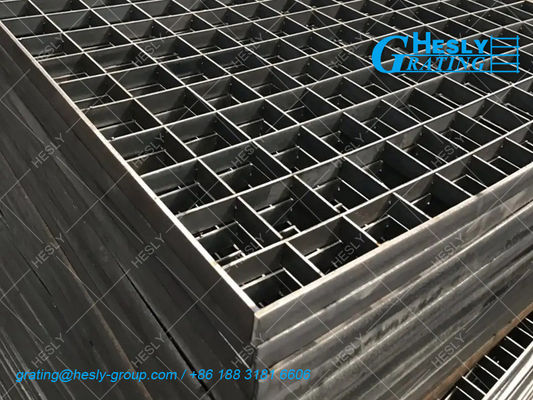

Pressure Locked Grating is often desired because of its neat appearance, smooth clean lines, durability, and its excellent lateral support. Permanent locking is achieved by hydraulically pressing two closely-toleranced slotted bars together. These gratings offer more flexibility in design than any other grating type.
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
![]() |
![]() |
![]() |
Heavy Duty Steel Bar Grating Factory | AISI304 Steel Grating Supplier | HESLY Metal Bar Grating |
![]() |
![]() |
![]() |
Pressure Locked Grating Supplier | Press Lock Steel Grating | Container Loading |
